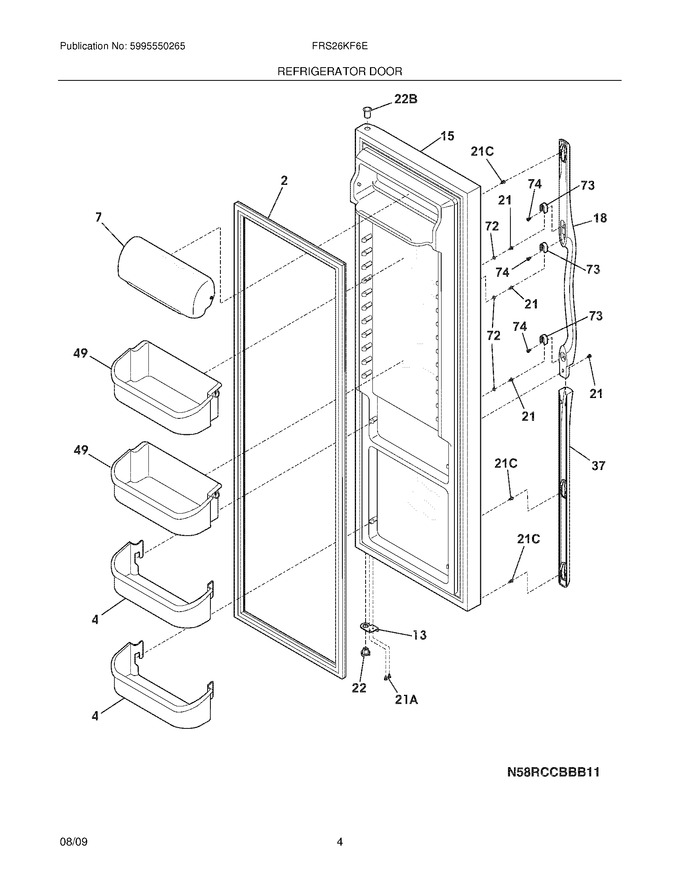

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786005		Refrigerator Door Gasket, Grey, Magnetic			Immediately	$ 225.62
4	240323002		Bin-door,pseudo ,bottom			Immediately	$ 67.21
7	240326203		Door-dairy				$ 40.37
13	240581905		Door Stop,black ,ref				$ 60.25
15	241534551		Door-refr,silver Mist ,complete Assy				$ 322.07
18	241934302		Handle-door,black		Appelez-nous	-
21	218781101		Screw,pan Head ,8-18 X 0.625				$ 15.60
22	242015302		Bearing-hinge(ref),black ,closer				$ 10.62
37	241927002		Trim-door Handle,black ,bottom				$ 41.96
49	240356402		Bin-door,gallon			Immediately	$ 106.83
72	240421701		Button-handle Mtg,dovetail				$ 14.81
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503204		Screw,cr Pan Hd ,10-16				$ 14.96
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
21C	240521304		Screw,no.8-18 X 3/4				$ 11.08
22B	240328404		Bearing-hinge,black ,upper				$ 22.87
