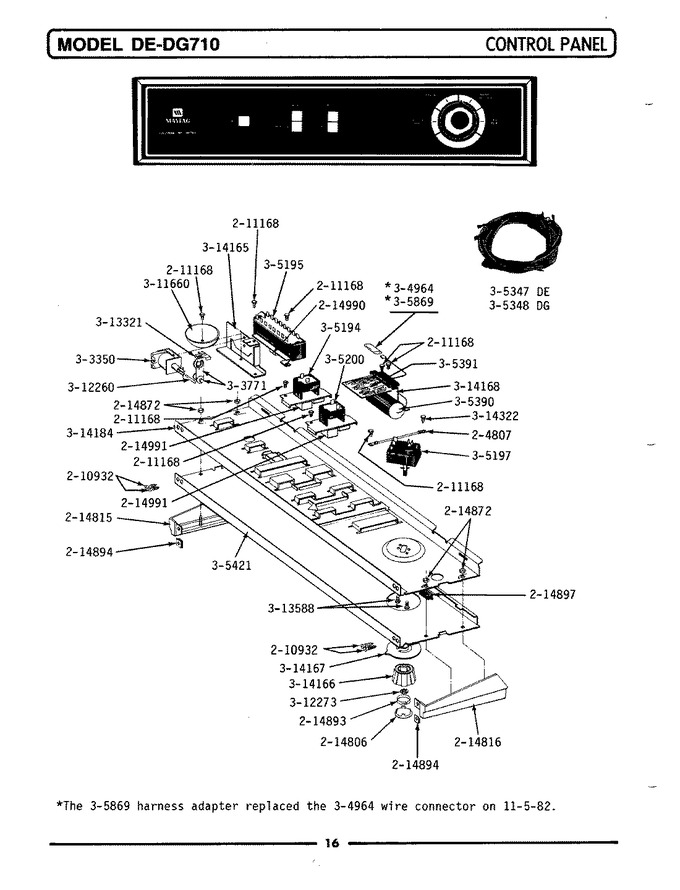

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 204807 | Grnd.wire,supp.plte To Top Cvr | 00 |
|
- | ||||
| 2 | 210932 | Screw, No.8 X 9/16 Ctsk | 00 |
|
- | ||||
| 3 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | 00 |
|
$ 6.75 | ||||
| 4 | 214806 | Cap For Timer Knob | 00 |
|
- | ||||
| 5 | 214815 | End Cap F/control Panel-lh | 00 |
|
- | ||||
| 6 | 214816 | End Cap F/control Panel-rh | 00 |
|
- | ||||
| 7 | 214872 | Palnut, End Cap | 00 |
|
- | ||||
| 8 | 214893 | Detent Ring F/timer Knob Ca | 00 |
|
- | ||||
| 9 | 214894 | Fastener, End Cap | 00 |
|
- | ||||
| 10 | 214897 | Pad, Control Panel | 00 |
|
- | ||||
| 11 | 214990 | Button For Switch | 00 |
|
$ 1,119.49 | ||||
| 12 | 214991 | Button For Switch | 00 |
|
- | ||||
| 13 | Y303350 | Solenoid | 00 |
|
- | ||||
| 14 | Y303771 | Chime Actuator Assembly | 00 |
|
- | ||||
| 15 | 304964 | Wire Connector | 00 |
|
- | ||||
| 16 | 305194 | Dryness Or Press Care Switc | 00 |
|
- | ||||
| 17 | 305195 | Start Control Switch | 00 |
|
- | ||||
| 18 | 305197 | Cycle Selector Switch | 00 |
|
- | ||||
| 19 | 305200 | Temperature Selector Switch | 00 |
|
- | ||||
| 20 | 305347 | Main Wire Harness | 00 |
|
- | ||||
| 21 | 305348 | Main Wire Harness | 00 |
|
- | ||||
| 22 | 305390 | Edgeboard Connector Assembl | 00 |
|
- | ||||
| 23 | 305391 | Printed Circuit Board | 00 |
|
- | ||||
| 24 | 305421 | Control Panel | 00 |
|
- | ||||
| 25 | 305869 | Harness Adapter Wire | 00 |
|
- | ||||
| 26 | Y311660 | Chime | 00 |
|
- | ||||
| 27 | Y312260 | Link | 00 |
|
- | ||||
| 28 | W10155650 | Nut (Replaces: 312273) | 00 |
|
$ 12.03 | ||||
| 29 | Y313321 | Chime Actuator | 00 |
|
- | ||||
| 30 | WP488234 | Screw (Replaces: Y313588) | 00 |
|
$ 6.07 | ||||
| 31 | 314165 | Chime And Solenoid Bracket | 00 |
|
- | ||||
| 32 | Y314166 | Knob For Timer | 00 |
|
- | ||||
| 33 | 314167 | Timer Dial Indicator | 00 |
|
- | ||||
| 34 | 313611 | Bracket F/electronic Contro (Replaces: 314168) | 00 |
|
$ 35.65 | ||||
| 35 | 314184 | Back Up Plate | 00 |
|
- | ||||
| 36 | Y314322 | Screw, No.8-32 X 3/8 Inch | 00 |
|
- |
