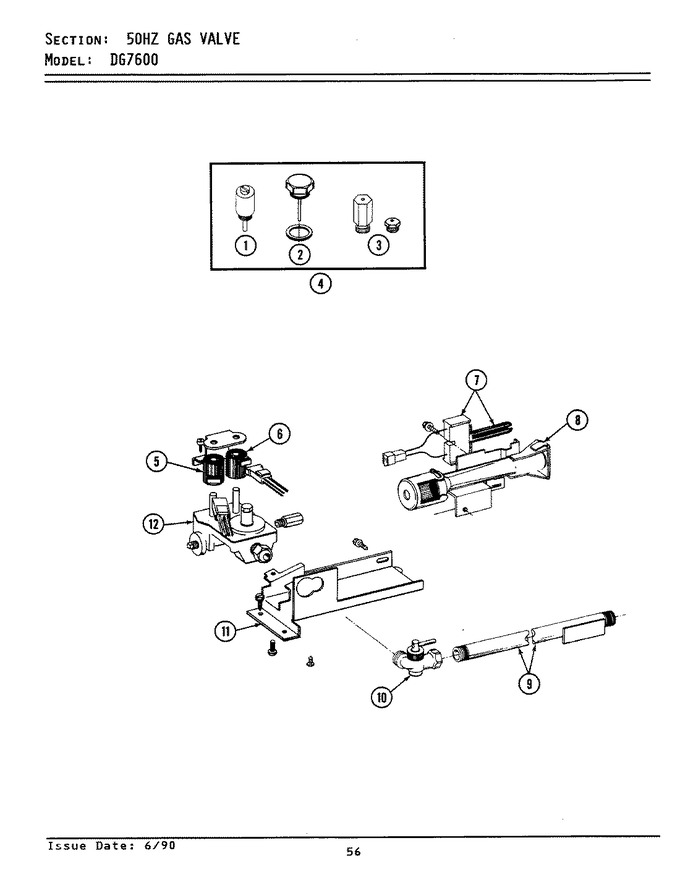

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 306184 | Plug, Blocking (lpg Regulator) | 00 |
|
- | ||||
| 2 | 302810 | Screw Assm - Blue Block Ope | 00 |
|
- | ||||
| 3 | 305861 | Main Burner Orifice Kit-lpg | 00 |
|
- | ||||
| 4 | MAL9000AXX | Conversion Kit (natural To Lp) (Replaces: Y306195) | 00 |
|
$ 72.26 | ||||
| 5 | WPY307931 | Holding, Booster Coil (Replaces: Y307931) | 00 |
|
$ 104.11 | ||||
| 6 | WP307930 | Secondary Coil (Replaces: 307930) | 00 |
|
$ 95.14 | ||||
| 7 | 304971 | Screw | 00 |
|
- | ||||
| 7 | 4391996 | Igniter Assy, Gas Valve (Replaces: 304970) | 00 |
|
Immediately | $ 42.36 | |||
| 8 | WP33002793 | Burner Assembly (Replaces: 304974) | 00 |
|
$ 161.35 | ||||
| 8 | Y310632 | Screw | 00 |
|
- | ||||
| 9 | Y303383 | Pipe & Bracket Assy. | 00 |
|
- | ||||
| 10 | Y313561 | Screw----na | 00 |
|
$ 5.27 | ||||
| 10 | Y310632 | Screw | 00 |
|
- | ||||
| 10 | Y303349 | Shut-off, Gas Valve | 00 |
|
- | ||||
| 11 | 314566 | Bracket, Gas Valve | 00 |
|
- | ||||
| 11 | Y313561 | Screw----na | 00 |
|
$ 5.27 | ||||
| 11 | WP90767 | Screw (Replaces: 314082) | 00 |
|
Immediately | $ 7.04 | |||
| 11 | WP90767 | Screw (Replaces: Y313559) | 00 |
|
Immediately | $ 7.04 | |||
| 12 | 307927 | Gas Valve - 120v-50hz | 00 |
|
$ 215.29 |
