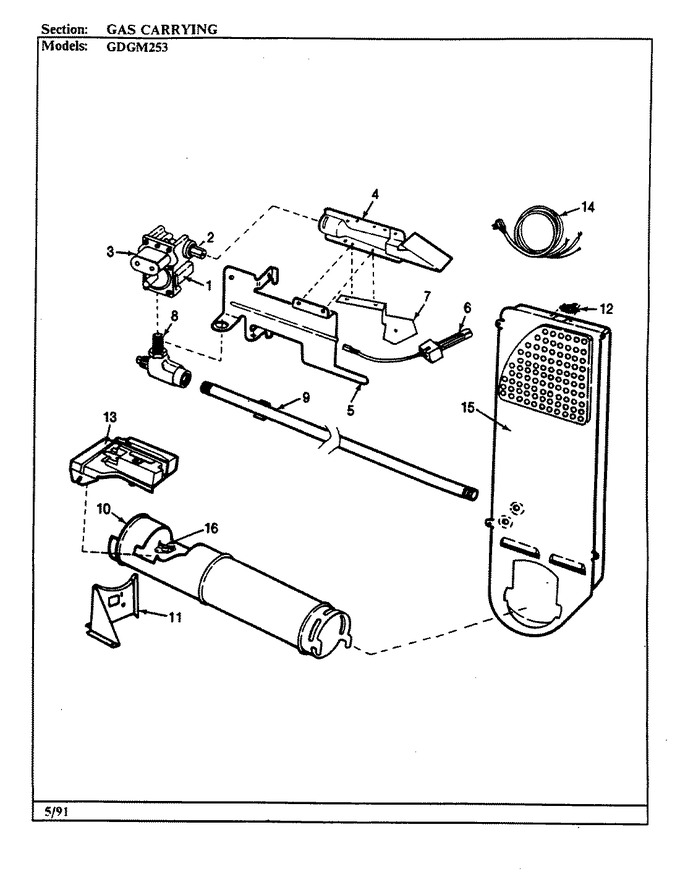

SELECT A DIAGRAM

01 - Cabinet (rev. A)


02 - Control Panel (original)


03 - Control Panel (rev. A)


04 - Cylinder & Drive (original)


05 - Door (rev. A)


06 - Exterior (original)


07 - Gas Carrying (original)


08 - Gas Carrying (rev. A)


09 - Motor & Drive (rev. A)


10 - Tumbler (rev. A)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53-1686		Gas Valve Control		Appelez-nous	-
2	W10124350		Not Required Part Or See Note Not Required		Appelez-nous	-
3	W10124350		Not Required Part Or See Note Not Required		Appelez-nous	-
4	63-6682		Burner Asm		Appelez-nous	-
5	53-0140		Mtg Bracket		Appelez-nous	-
5	WP90767		Screw   (Replaces: 25-7741)			Immediately	$ 7.04
6	WP31001556		Igniter   (Replaces: 53-0689)			Immediately	$ 79.78
7	WP8281196		Screw   (Replaces: 25-7744)			Immediately	$ 6.47
7	25-3034		Clip, Wiring		Appelez-nous	-
7	WP90767		Screw   (Replaces: 25-2134)			Immediately	$ 7.04
7	53-0686		Bracket		Appelez-nous	-
8	53-0101		Shutoff Valve		Appelez-nous	-
9	53-0173		Gas Pipe		Appelez-nous	-
10	53-0138		Heater Housing		Appelez-nous	-
11	WP90767		Screw   (Replaces: 25-7741)			Immediately	$ 7.04
11	53-0139		Heater Support		Appelez-nous	-
11	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
12	25-0168		Screw		Appelez-nous	-
12	LA-1053		Hi Lmt Tstat   (Replaces: 53-0143)			Immediately	$ 51.07
13	WP90767		Screw   (Replaces: 25-7741)			Immediately	$ 7.04
13	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
13	WP338906		Sensor   (Replaces: 63-5013)			Immediately	$ 46.72
13	WP90767		Screw   (Replaces: 25-2134)			Immediately	$ 7.04
14	63-6259		Cord, Power		Appelez-nous	-
15	WP63-6766		Conversion Kit (nat-lp)   (Replaces: 63-6766)				$ 47.57
15	LA-1053		Fuse Kit, Thermal			Immediately	$ 51.07
15	53-0169		Inlet Air Duct		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
