01 - Cabinet
02 - Control Panel
03 - Door
04 - Gas Carrying
05 - Motor & Drive
06 - Tumbler
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

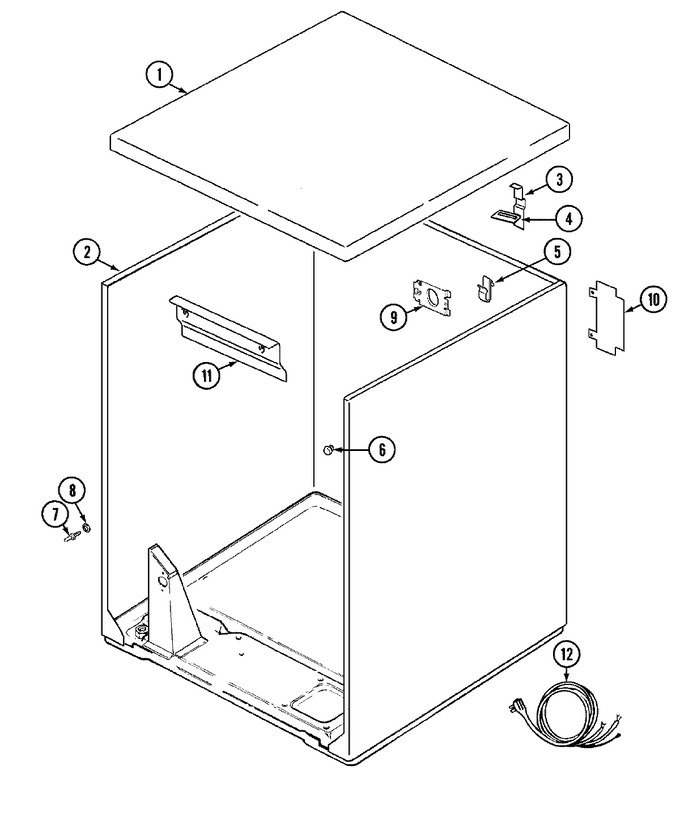

| 1 | 53-1711 | Cabinet Top (dryer) |
|
- | |||||
| 2 | 53-2147 | Cabinet & Base Assy |
|
- | |||||
| 3 | 63-5712 | Hinge, Cabinet Top |
|
- | |||||
| 4 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 4 | 33-0930 | Pad, Top Hinge |
|
- | |||||
| 5 | 25-3034 | Clip, Wiring |
|
- | |||||
| 6 | 33-2653 | Bumper, Cabinet |
|
- | |||||
| 7 | 53-0643 | Pin, Locator |
|
- | |||||
| 8 | 53-0200 | Sleeve, Locator Pin |
|
- | |||||
| 8 | WP3400029 | Nut, Locator Pin (Replaces: 25-0224) |
|
Immediately | $ 6.98 | ||||
| 9 | 53-0135 | Support, Power Cord |
|
- | |||||
| 10 | 53-0136 | Cover, Supply Cord |
|
- | |||||
| 10 | WP90767 | Screw (Replaces: 25-7857) |
|
Immediately | $ 7.04 | ||||
| 11 | W10124350 | Not Required Part Or See Note Shield, Heat |
|
- |
