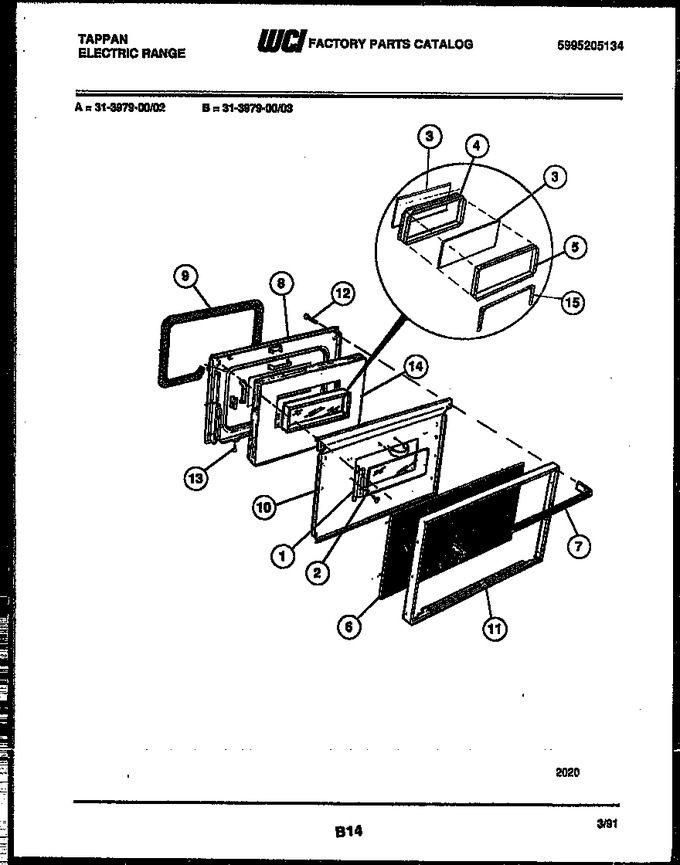

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303209510		Bracket-glass (2)		Appelez-nous	-
2	5303209513		Glass-heat Barrier Ctng		Appelez-nous	-
3	5303209512		Glass Heat Barrier (2)				$ 150.41
4	5303209517		Spacer-glass		Appelez-nous	-
5	5303209511		Collar-glass		Appelez-nous	-
6	5303131132		Glass-front Visualite		Appelez-nous	-
7	5303131256		Handle		Appelez-nous	-
8	5303209515		Liner		Appelez-nous	-
9	5303131601		Seal, Door				$ 374.63
10	5303211084		Shield-wool		Appelez-nous	-
11	5303209518		Trim-oven Door		Appelez-nous	-
12	3016851		Screw-handle		Appelez-nous	-
13	5303269859		Screw 8-18 X 1/2 Blk		Appelez-nous	-
14	5303209514		Insulation-wool		Appelez-nous	-
15	5303211085		Seal-rope				$ 44.00
*46193	5303212674		Fastener-spacer (1)		Appelez-nous	-
*46193	5303212762		Screw 8-18 X 1/2 Ph		Appelez-nous	-
*46194	5303208655		Foil-alum Blk		Appelez-nous	-
*46194	5303208656		Foil-alum Blk		Appelez-nous	-
