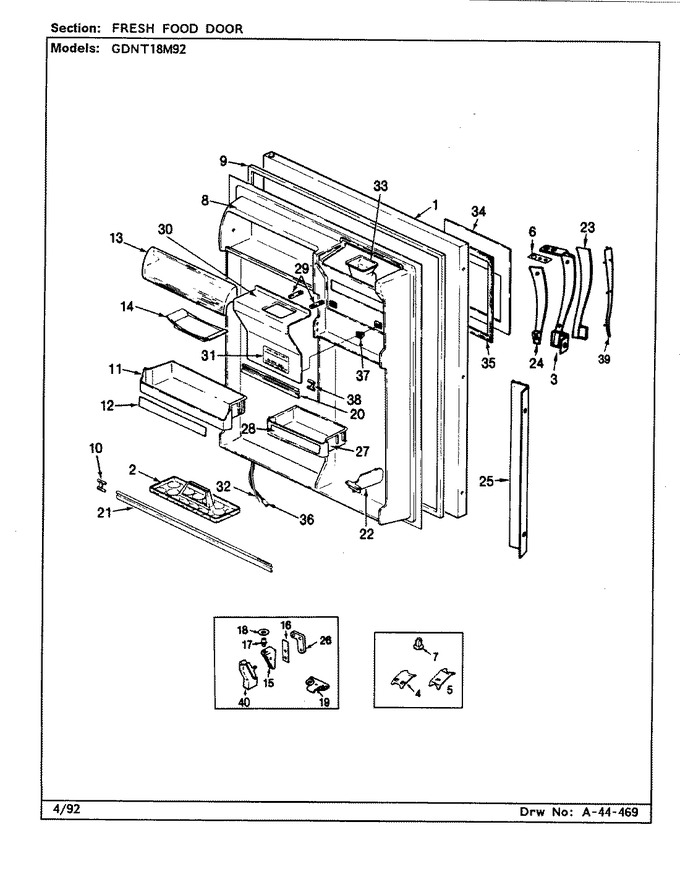

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 68477-2-WW | Panel, F.f. Door (wht) |
|
- | |||||
| 2 | 60066-1 | Tray, Egg |
|
- | |||||
| 3 | 66255-2 | Door Handle |
|
- | |||||
| 3 | 69835-1 | Shim, Handle |
|
- | |||||
| 4 | 60123-2 | Clip, Stop Screw |
|
- | |||||
| 4 | 65275-57 | Screw |
|
- | |||||
| 5 | 56209-3 | Clip, Stop Screw |
|
- | |||||
| 6 | 68776-1 | Shim Handle----na |
|
- | |||||
| 7 | 55782-10 | Plug Button, Hdle & Door Stop |
|
- | |||||
| 8 | 68678-6 | Liner, F.f. Door |
|
- | |||||
| 8 | 65275-5 | Screw |
|
- | |||||
| 9 | WP70048-3 | Gasket, F.f. Door (Replaces: 66199-6) |
|
$ 283.11 | |||||
| 10 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) |
|
$ 9.39 | |||||
| 11 | 60037-36 | Shelf, Pick-off |
|
- | |||||
| 12 | 68130-86 | Insert |
|
- | |||||
| 13 | 69058-2 | Door, Dairy |
|
- | |||||
| 14 | 29936-2 | Tray, Butter |
|
- | |||||
| 15 | 65275-51 | Screw, Lower Hinge |
|
- | |||||
| 15 | 68975-3 | Hinge, Lower |
|
- | |||||
| 16 | 69031-3 | Shim |
|
- | |||||
| 17 | 68976-1 | Pin, Lower Hinge |
|
- | |||||
| 18 | 67483-3 | Washer, Door Spacer |
|
Immediately | $ 45.86 | ||||
| 19 | 65275-48 | Screw |
|
- | |||||
| 19 | 68987-2 | Stop, Door |
|
- | |||||
| 20 | 68376-17 | Trim |
|
- | |||||
| 21 | WP61003045 | Trim (Replaces: 68832-50) |
|
$ 129.55 | |||||
| 22 | 66645-6 | Organizer Package |
|
- | |||||
| 23 | 68036-3 | Insert (wht) |
|
- | |||||
| 24 | 60580-5 | Insert |
|
- | |||||
| 24 | 65275-53 | Screw |
|
- | |||||
| 25 | 60453-19 | Trim Extension |
|
- | |||||
| 26 | 67874-1 | Tapping Plate, Lower Hinge |
|
- | |||||
| 26 | 65275-59 | Screw |
|
- | |||||
| 27 | 60037-35 | Door Shelf |
|
- | |||||
| 28 | 68130-73 | Insert |
|
- | |||||
| 29 | 52077-26 | Seal |
|
- | |||||
| 30 | 68781-1 | Insulation, Fountain Back |
|
- | |||||
| 30 | 68700-1 | Panel, Access |
|
- | |||||
| 30 | 68779-1 | Insulation, Fountain Perimeter |
|
- | |||||
| 31 | 68785-8 | Insert |
|
- | |||||
| 32 | WPW10426709 | Tubing (Replaces: 67187-11) |
|
$ 126.83 | |||||
| 33 | 68571-1 | Chute, Ice |
|
- | |||||
| 34 | 68594-38 | Escutcheon (wht) |
|
- | |||||
| 35 | 95121-1 | Tape, Escutcheon |
|
- | |||||
| 36 | 69152-2 | Wire Harness |
|
- | |||||
| 36 | 68907-1 | Wire Harness |
|
- | |||||
| 37 | 65184-3 | Latch |
|
- | |||||
| 38 | 65246-1 | Retainer |
|
$ 5.04 | |||||
| 39 | 68048-4 | Insert, Vinyl |
|
- | |||||
| 40 | 65275-56 | Screw |
|
- | |||||
| 40 | 68978-4 | Cover, Lower Hinge (wht) |
|
- |
