01 - Control Panel
02 - Door
03 - Pump & Motor
04 - Racks
05 - Rinse Aid & Soap Dispenser
06 - Tub
SELECT A DIAGRAM
New Model Search:

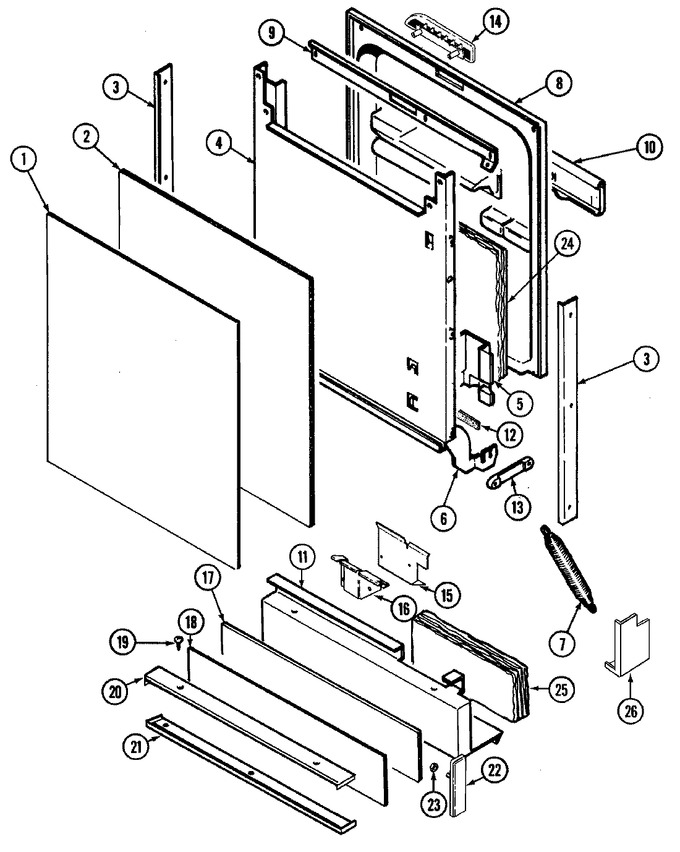

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y913223 | Insert, Front Panel (blk/alm) | 27 |
|
- | ||||
| 1 | Y913165 | Insert, Front Panel (wht/alm) | A0 |
|
- | ||||
| 1 | 913111 | Insert, Panel (bk/h-wheat) | A0 |
|
- | ||||
| 2 | Y913184 | Filler, Front Panel | A0 |
|
- | ||||
| 3 | 99001350 | Trim, Side (blk) | 28 |
|
- | ||||
| 3 | 912905 | Trim, Side | A0 |
|
- | ||||
| 3 | Y913157 | Screw | A0 |
|
- | ||||
| 4 | 904029 | Panel, Door | A0 |
|
- | ||||
| 4 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | A0 |
|
Immediately | $ 6.90 | |||
| 5 | 912883 | Retainer, Wire | A0 |
|
- | ||||
| 5 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | A0 |
|
Immediately | $ 6.90 | |||
| 6 | 903070 | Hinge (lt) | A0 |
|
- | ||||
| 6 | 99001075 | Screw | A0 |
|
$ 5.81 | ||||
| 6 | 903071 | Hinge (rt) | A0 |
|
- | ||||
| 7 | WP912652 | Spring, Door (Replaces: 912652) | A0 |
|
Immediately | $ 9.00 | |||
| 8 | Y912918 | Door, Inner | A0 |
|
- | ||||
| 8 | Y912620 | Screw | A0 |
|
$ 5.48 | ||||
| 9 | Y913178 | Seal, Reinforcement | A0 |
|
$ 7.50 | ||||
| 9 | Y913093 | Bar, Reinforcement | A0 |
|
- | ||||
| 10 | 903483 | Lid, Detergent Cup | A0 |
|
$ 5.02 | ||||
| 11 | WP6-912366 | Screw (Replaces: 912366) | A0 |
|
$ 7.29 | ||||
| 11 | 912636 | Panel, Access (blk) | A0 |
|
- | ||||
| 11 | 912636 | Panel, Access (blk) | B6 |
|
- | ||||
| 12 | 903233 | Foam Strip, Insulation | A0 |
|
- | ||||
| 13 | WP912653 | Link, Door Spring (Replaces: 912653) | A0 |
|
Immediately | $ 7.45 | |||
| 14 | Y912620 | Screw | A0 |
|
$ 5.48 | ||||
| 14 | Y912910 | Cover, Vent | A0 |
|
$ 30.43 | ||||
| 15 | 912641 | Shield, Tub (blk) | A0 |
|
- | ||||
| 15 | WP6-912366 | Screw (Replaces: 912366) | A0 |
|
$ 7.29 | ||||
| 16 | 912642 | Cover, Wire (blk) | A0 |
|
- | ||||
| 16 | WP6-912366 | Screw (Replaces: 912366) | A0 |
|
$ 7.29 | ||||
| 17 | 912525 | Filler, Access Panel | A0 |
|
- | ||||
| 18 | 913112 | Insert, Panel (bk/h-wheat) | B6 |
|
- | ||||
| 18 | Y913222 | Insert, Access Panel (blk/alm) | 27 |
|
- | ||||
| 18 | Y913164 | Insert, Access Panel (wh/al) | A0 |
|
- | ||||
| 18 | 913112 | Insert, Panel (bk/h-wheat) | A0 |
|
- | ||||
| 19 | Y913163 | Screw | B6 |
|
- | ||||
| 19 | WP489128 | Screw (Replaces: 912365) | A0 |
|
$ 9.79 | ||||
| 19 | Y913163 | Screw | A0 |
|
- | ||||
| 20 | 912929 | Trim, Access Panel (top) | B6 |
|
- | ||||
| 20 | 912929 | Trim, Access Panel (top) | A0 |
|
- | ||||
| 21 | 912928 | Trim, Access Panel (bottom) | B6 |
|
- | ||||
| 21 | 912928 | Trim, Access Panel (bottom) | A0 |
|
- | ||||
| 22 | 913058 | End Cap, Access Panel (blk) | A0 |
|
- | ||||
| 22 | 913058 | End Cap, Access Panel (blk) | B6 |
|
- | ||||
| 22 | 99001363 | End Cap, Access Panel (blk) | 28 |
|
- | ||||
| 23 | 214872 | Palnut, End Cap | A0 |
|
- | ||||
| 24 | WP6-920580 | Insulation, Door (Replaces: Y912669) | A0 |
|
$ 28.77 | ||||
| 25 | Y912836 | Insulation, Access Panel | A0 |
|
- | ||||
| 26 | Y912810 | Shield, Access Panel (lt) | A0 |
|
- | ||||
| 26 | WP4312464 | Screw (Replaces: 912197) | A0 |
|
$ 6.26 | ||||
| 26 | Y912809 | Shield, Access Panel (rt) | A0 |
|
- | ||||
| NI | Y912811 | Shield, Wiring-canada | A0 |
|
- |
