Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12658565W Refrigerator Door (w/liner) (white) Appelez-nous -
1 12658565B Refrigerator Door (w/liner) (black) Appelez-nous -
1 12658566S Refrigerator Door (w/liner) (stainless Steel) Appelez-nous -
2 WP3387230 Screw   (Replaces: 8170956) In-Stock Immediately $ 7.86

3 WP12744905 Door, Compartment   (Replaces: 8171204) Special Order $ 102.59

4 WP67001279 Tray, Dairy   (Replaces: 8170793) In-Stock Immediately $ 79.21

5 WPW10371194 Shelf Bin (medium) (4)   (Replaces: 8171166) In-Stock Immediately $ 69.51

6 WP67001130 Plug, Handle Hole (white)   (Replaces: 8170791) In-Stock Immediately $ 7.39

6 WP12246608 Plug, Handle Hole (black)   (Replaces: 8170792) In-Stock Immediately $ 7.34

7 8208212 Plug, Button (white) Appelez-nous -
7 67004838 Plug, Button (black)   (Replaces: 8208213) Special Order $ 10.09

8 8171197 Door Gasket, Magnetic (white) Appelez-nous -
8 WPW10436248 Door Gasket, Magnetic (black)   (Replaces: 8170758) Special Order $ 316.71

9 WP2254600W Door Handle (white)   (Replaces: 2319729W) Special Order $ 222.21

9 2319729S Door Handle (stainless Steel) Appelez-nous -
9 WP2254600B Door Handle (black)   (Replaces: 2319729B) Special Order $ 197.29

11 WP67003638 Door Closure (white)   (Replaces: 8171245) In-Stock Immediately $ 7.34

11 WP67003639 Door Closure (black)   (Replaces: 8171246) In-Stock Immediately $ 81.29

13 8171220 Stud, Handle Appelez-nous -
14 8170795 Shelf, Bin (large) Appelez-nous -
15 WP98165 Screw   (Replaces: 67006287) Special Order $ 7.71

17 12968202W Stop, Door (white)   (Replaces: 8171205) Special Order $ 62.36

17 W11708403 Stop, Door (black)   (Replaces: 8171214) Special Order $ 13.28

18 WP67004977 Bushing (white)   (Replaces: 8208208) Special Order $ 7.38

18 67004978 Bushing (black)   (Replaces: 8171213) In-Stock Immediately $ 19.89

19 8170797 Nameplate Appelez-nous -

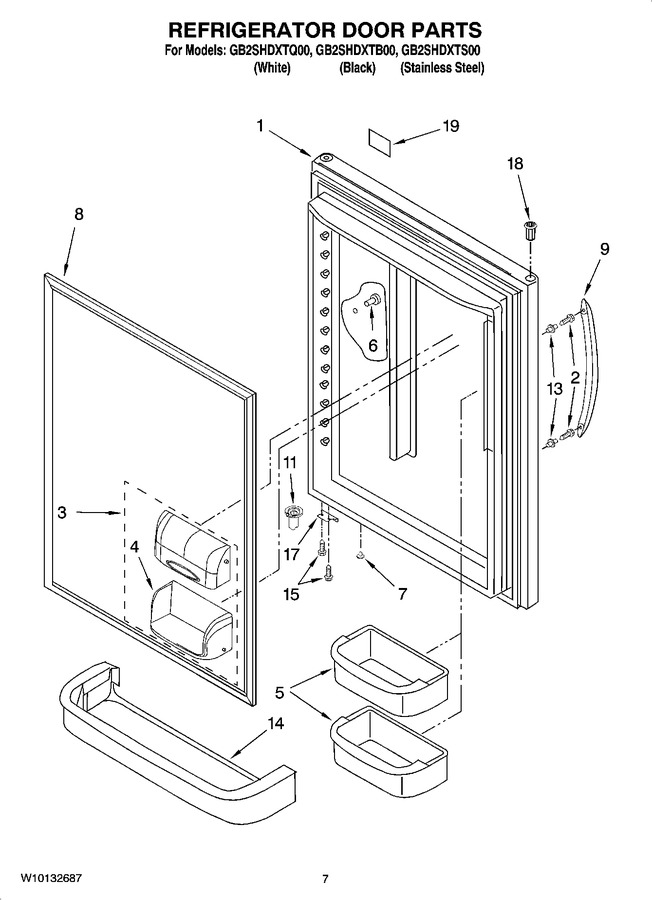

    View Diagram in Separate Window     Print Icon   Print Part List
