01 - Control Panel


02 - Door


03 - Pump & Motor


04 - Racks


05 - Rinse Aid & Soap Dispenser


06 - Tub

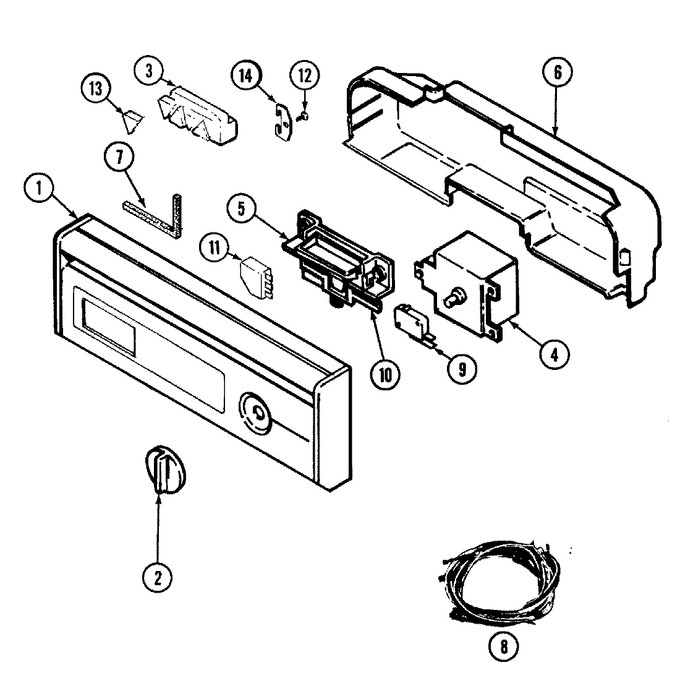

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
1	99001376		Panel, Control (blk)	28	Appelez-nous	-
1	99001301		Panel, Control (blk)	A0	Appelez-nous	-
2	903514		Knob, Timer	A0	Appelez-nous	-
3	903551		Switch (4-button)	A0	Appelez-nous	-
3	913180		Shield, Control	A0	Appelez-nous	-
4	903502CP		Timer   (Replaces: 903502)	A0	Appelez-nous	-
4	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
5	99002254		Holder, Door Switch   (Replaces: 99001077)	A0			$ 116.79
5	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
6	Y912937		Barrier, Control Panel	A0	Appelez-nous	-
7	Y913116		Liner, Vent	A0	Appelez-nous	-
7	Y913177		Seal, Vent Outlet	A0	Appelez-nous	-
8	99001172		Wire Harness, Main	A0	Appelez-nous	-
8	315471		Retainer, Wire	A0	Appelez-nous	-
9	99002254		Switch, Door   (Replaces: 903086)	A0			$ 116.79
10	W10834433		Handle, Latch (blk)   (Replaces: 99001078)	A0		Immediately	$ 108.37
11	903651		Extender, Cycle	A0	Appelez-nous	-
12	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
13	913146		Button (blk)	A0	Appelez-nous	-
14	913139		Bracket, Switch	A0	Appelez-nous	-
15	913225		Manual, Use & Care (french)	A0	Appelez-nous	-
NI	Y913224		Manual, Use & Care	A0	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
