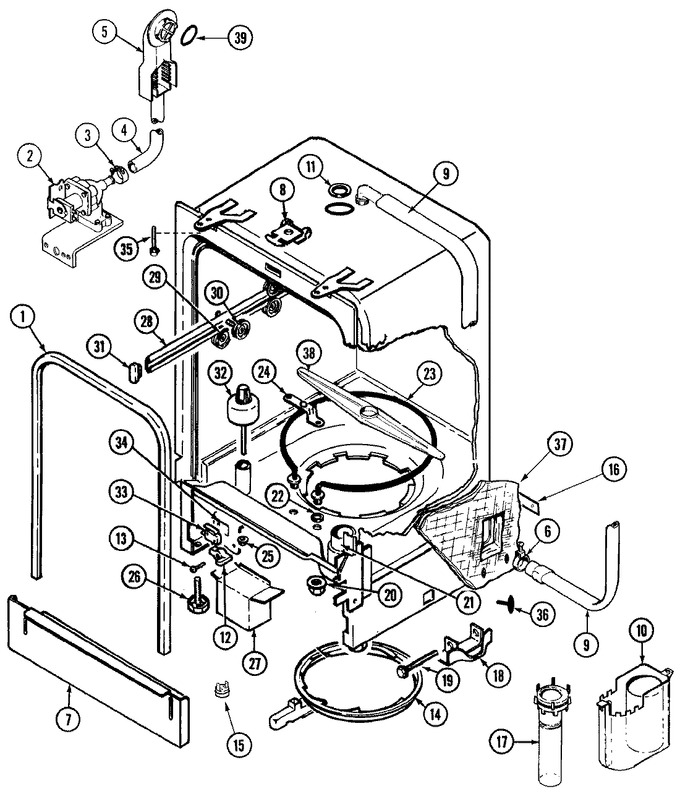

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP902894		Seal, Door   (Replaces: 902894)	A0		Immediately	$ 78.23
2	903868		Valve, Water	A0	Appelez-nous	-
2	WP489128		Screw   (Replaces: 912365)	A0			$ 9.79
3	WP596669		Clamp, Spring   (Replaces: 911856)	A0		Immediately	$ 7.56
4	912633		Hose, Injector	A0			$ 62.76
5	912533		Injector, Water	A0			$ 35.89
6	WP616099		Clamp, Hose (1 1/4``)   (Replaces: 904030)	A0		Immediately	$ 7.03
7	99001106		Panel, Toe (wht)	B6	Appelez-nous	-
7	99001194		Screw, Access Panel	A0			$ 6.18
7	99001112		Panel, Toe (wht)	A0	Appelez-nous	-
8	Y912873		Screw, Latch	A0	Appelez-nous	-
8	912650		Retainer, Latch	A0	Appelez-nous	-
8	912648		Spring, Latch	A0	Appelez-nous	-
8	912649		Hook, Latch	A0	Appelez-nous	-
9	912647		Hose, Top Shower	A0			$ 63.93
10	Y913095		Vent, Inlet	A0	Appelez-nous	-
11	910069		Washer, Tub Top	A0			$ 35.86
12	912014		Lever, Actuator	A0			$ 52.13
13	912015		Pin, Lever Pivot	A0	Appelez-nous	-
14	Y912686		Ring, Locking	A0	Appelez-nous	-
15	99001006		Thermostat, Limiting	A0	Appelez-nous	-
15	99001008		Clip, Thermostat	A0	Appelez-nous	-
16	912654		Strap, Support	A0			$ 5.27
16	WP489128		Screw   (Replaces: 912365)	A0			$ 9.79
17	Y913096		Tube, Inlet	A0	Appelez-nous	-
18	912651		Bracket, Adjusting	A0	Appelez-nous	-
19	912613		Screw, Adjusting Bracket	A0	Appelez-nous	-
20	912645		Nut, Heating Element	A0	Appelez-nous	-
20	99001333		Sleeve, Insulating	B6	Appelez-nous	-
21	Y912659		Cap, Air Inlet	A0	Appelez-nous	-
21	912622		Screw	A0	Appelez-nous	-
22	910603		Washer, Heating Element	A0	Appelez-nous	-
23	903096		Element, Heating	A0	Appelez-nous	-
24	Y912541		Bracket, Heating Element	A0	Appelez-nous	-
25	911265		Palnut, Float	A0			$ 5.83
26	WPW10143258		Leg, Leveling   (Replaces: 912579)	A0			$ 13.81
27	912563		Box, Terminal	A0	Appelez-nous	-
27	4396672		Clamp, Cable   (Replaces: 400321)	A0		Immediately	$ 17.38
28	Y912545		Track, Rack	A0			$ 40.33
29	WP99002947		Shaft, Tub Wheel   (Replaces: 912549)	A0		Immediately	$ 10.58
29	912548		Wheel, Tub	A0	Appelez-nous	-
30	WPY912798		Washer, Tub Wheel   (Replaces: Y912798)	A0			$ 6.90
31	WP99002136		Stop, Rack   (Replaces: 912938)	A0			$ 12.78
32	WP99002363		Float   (Replaces: Y912687)	A0			$ 7.42
33	900882		Switch, Water Level	A0	Appelez-nous	-
33	912012		Screw	A0	Appelez-nous	-
34	912656		Bracket, Water Level Switch	A0	Appelez-nous	-
34	WP489128		Screw   (Replaces: 912365)	A0			$ 9.79
35	WP489491		Screw, Cabinet Mount   (Replaces: 912799)	A0			$ 6.26
36	911917		Fastener, Insulation	A0	Appelez-nous	-
37	99001076		Strap, Insulation	A0	Appelez-nous	-
37	99001057		Fastener, Panel	A0	Appelez-nous	-
37	WPW10223013		Insulation, Tub   (Replaces: 912655)	A0			$ 83.60
38	903474		Arm, Spray (upper)	A0	Appelez-nous	-
39	912644		Seal Ring, Injector	A0			$ 7.59
