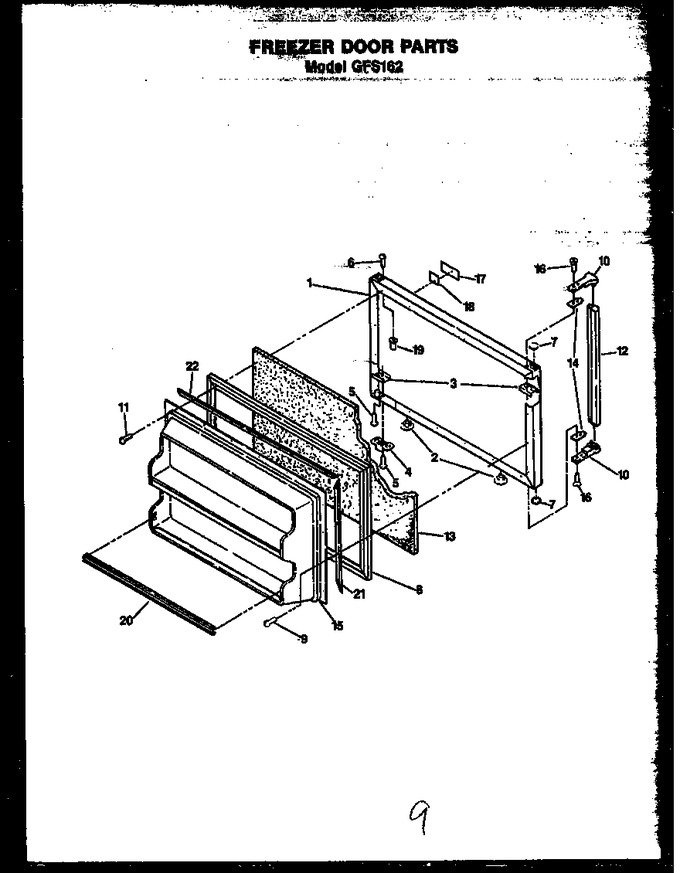

03 - Fz Door Parts


04 - Page 3


05 - Ref Door Parts


06 - Shelf Parts


07 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	56748W		Panel, Outer Dr-w		Appelez-nous	-
1	56748L		Panel, Outer Dr-lnote 1-		Appelez-nous	-
2	56583L		Hole Plug - Almond		Appelez-nous	-
2	56583W		Hole Plug - White		Appelez-nous	-
3	56678		Plate, Tap		Appelez-nous	-
4	56694		Instructions,drying Rack		Appelez-nous	-
5	0056564		Screw		Appelez-nous	-
6	0056564		Screw		Appelez-nous	-
7	56626L		Hole Plug - Almond		Appelez-nous	-
7	56626W		Hole Plug - White		Appelez-nous	-
8	0056811		Gasket, Freezer Door		Appelez-nous	-
9	0056545		Screw		Appelez-nous	-
10	0056696		Handle End		Appelez-nous	-
11	0311132		Sub 56545, Screw		Appelez-nous	-
12	Y0056857		Sub 56856, Door Handle		Appelez-nous	-
13	56630		Manual, Operation		Appelez-nous	-
14	0056679		Spacer, Door Handle		Appelez-nous	-
15	Y310638		Panel, Inner Door		Appelez-nous	-
16	0056567		Screw		Appelez-nous	-
17	56961		Nameplate		Appelez-nous	-
18	Y0056731		Tape Strip, Nameplate		Appelez-nous	-
19	Y0056571		Cap, Hinge Sleeve		Appelez-nous	-
20	0056955		Sub 56979, Trim, Door Shelf		Appelez-nous	-
21	Y0310644		Gasket, Retainer Side		Appelez-nous	-
22	Y310635		Gasket Retainer, Top & Bottom		Appelez-nous	-
