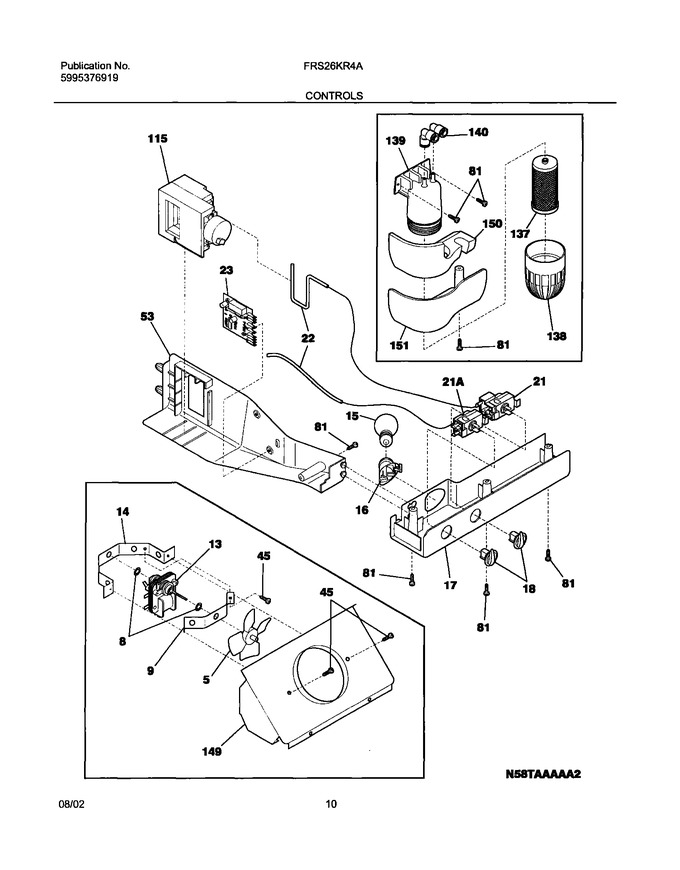

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303292396		Bracket-motor Mtg,front				$ 72.30
14	240438003		Bracket-motor Mtg,rear   (Replaces: 5303292397)				$ 17.44
15	316538904		Light Bulb/lamp,a-15 ,clear ,40 W ,120 V,miniature   (Replaces: 240436702)			Immediately	$ 20.48
16	218906802		Socket-light/lamp   (Replaces: 218906801)				$ 17.72
17	240383301		Box-control,front		Appelez-nous	-
18	240360801		Knob-temp Control				$ 43.95
22	218660702		Tube-insulator		Appelez-nous	-
23	240554502		Control-defrost,adaptive Timer ,pc Board		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
53	240549201		Box-control		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
115	240521106		Damper Assy,w/seal		Appelez-nous	-
138	240370201		Cup-water Filter		Appelez-nous	-
139	240369901		Housing-wtr Filter		Appelez-nous	-
140	240545201		Elbow-water Tube				$ 73.71
149	240331602		Shroud-fan Orfice		Appelez-nous	-
150	240394102		Insulation-water Filter Cover				$ 51.40
151	240376002		Cover-water Filter				$ 55.91
21A	5304429601		Control-temperature		Appelez-nous	-
F13	5303918549		Motor-evap Fan   (Replaces: 240315803)			Immediately	$ 88.16
F137	WFCB		Filter-water,carbon ,with O`rings   (Replaces: 240389101)			Immediately	$ 66.15
F21	240383703		Control-temperature			Immediately	$ 519.48
F5	5308000010		Fan Blade,red ,evaporator Fan			Immediately	$ 49.03
NI	218904301		O-ring,wtr Filter Cup				$ 13.46
NI	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
NI	240556902		Wiring Harness,controls		Appelez-nous	-
NI	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 18.43
NI	3205266		Edge Protector, Wiring Harness				$ 80.09

    View Diagram in Separate Window       Print Part List
