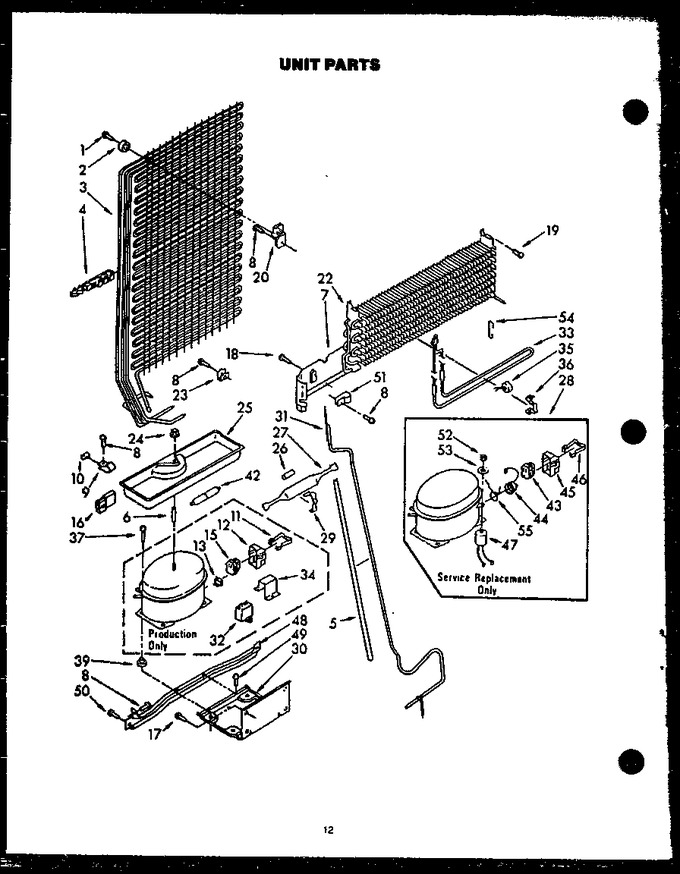

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0056515		Sub 56513, Screw		Appelez-nous	-
2	56700		Frame,r.h.		Appelez-nous	-
3	Y0056833		Condenser And Precooler		Appelez-nous	-
4	56937		Transformer		Appelez-nous	-
5	Y0056834		Sub 56854, Sleeve		Appelez-nous	-
6	56758		Lock & Key		Appelez-nous	-
7	Y0056842		Heat Shield, Evaporator		Appelez-nous	-
8	Y0056568		Screw		Appelez-nous	-
9	0056573		Tube Clamp		Appelez-nous	-
10	0056710		Dampener		Appelez-nous	-
11	Y0056646		Strap, Relay Cover		Appelez-nous	-
12	Y0056840		Case, Relay		Appelez-nous	-
13	0056767		Overload		Appelez-nous	-
16	0056632		Housing Plug		Appelez-nous	-
17	0056521		Sub 56543, Screw		Appelez-nous	-
18	Y0056510		Screw, 8 X 3/8		Appelez-nous	-
19	Y0056558		Sub 56560, Screw		Appelez-nous	-
20	56703		Guard,coin Slide		Appelez-nous	-
22	Y0056675		Evaporator		Appelez-nous	-
23	Y0056671		Mtg. Clip, Condenser		Appelez-nous	-
24	Y0056554		Nut		Appelez-nous	-
25	0056741		Tray, Evaporator		Appelez-nous	-
26	Y0056572		Sleeve, Restrictor		Appelez-nous	-
27	W10843121		Drier   (Replaces: Y0056708)			Immediately	$ 47.31
28	W10439652		Compressor Assy   (Replaces: Y0056501)				$ 379.03
29	Y56228		Assy,lead-in Pipe		Appelez-nous	-
30	56674		Plate, Mounting		Appelez-nous	-
31	Y0056757		Heat Exchanger		Appelez-nous	-
32	0056934		Sub 56908, Capacitor		Appelez-nous	-
33	0056763		Heater, Defrost		Appelez-nous	-
35	WP4387499		Sub 56496, Bimetal Defrost   (Replaces: Y0056841)				$ 108.77
36	Y0056676		Clamp		Appelez-nous	-
37	Y0056546		Screw		Appelez-nous	-
39	56739		Plate,face-coin Door-r		Appelez-nous	-
44	56503		Timer		Appelez-nous	-
45	Y0056755		Sub 56840, Cover, Relay		Appelez-nous	-
46	Y0056646		Strap, Relay Cover		Appelez-nous	-
47	56502		Spacer,timer		Appelez-nous	-
48	Y0310823		Unit Mounting Rail		Appelez-nous	-
49	Y0056507		Sub 56510, Screw		Appelez-nous	-
50	Y0056536		Screw, 1/4-28 X 1		Appelez-nous	-
51	Y0056553		Clamp		Appelez-nous	-
52	56549		Plate,terminal Bracket		Appelez-nous	-
53	Y0056550		Washer		Appelez-nous	-
54	Y0056845		Support, Heater		Appelez-nous	-
55	Y0056904		Spring, Overload		Appelez-nous	-
NI	Y0057043		Kit, Evaporator Repair		Appelez-nous	-
