SELECT A DIAGRAM

01 - Compartment Separator Parts


02 - Fz Door Parts


03 - Liner Parts


04 - Page 3


05 - Page 6


06 - Ref Door Parts


07 - Unit Parts

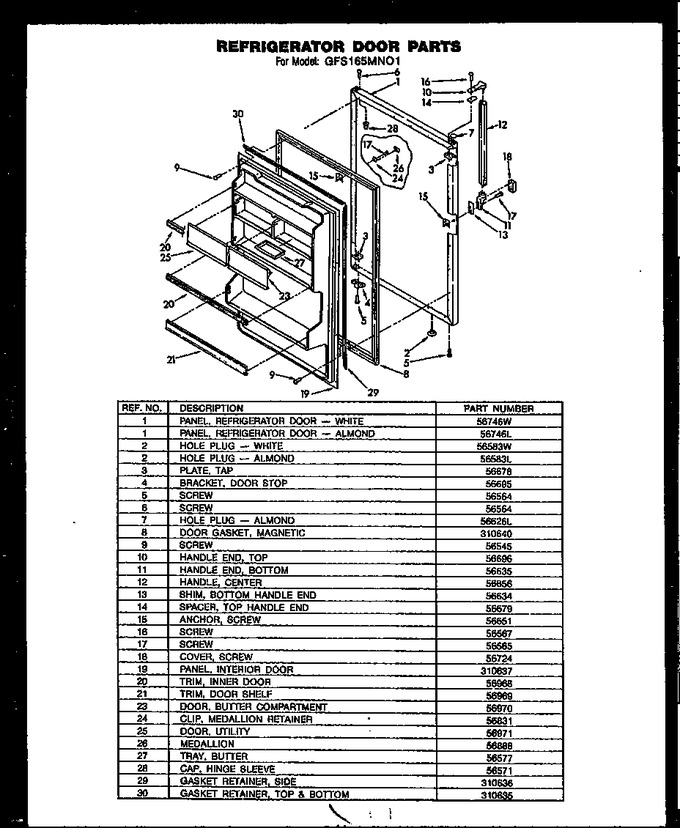

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	56746L		Panel, Outer-l		Appelez-nous	-
1	56746W		Panel, Outer-w		Appelez-nous	-
2	56583L		Hole Plug - Almond		Appelez-nous	-
2	56583W		Hole Plug - White		Appelez-nous	-
3	56678		Plate, Tap		Appelez-nous	-
4	0056695		Bracket, Door Stop		Appelez-nous	-
5	0056564		Screw		Appelez-nous	-
6	0056564		Screw		Appelez-nous	-
7	56626L		Hole Plug - Almond		Appelez-nous	-
8	Y0310640		Sub 56858, Gasket Refrig. Door		Appelez-nous	-
9	0056545		Screw		Appelez-nous	-
10	0056696		Handle End		Appelez-nous	-
11	0056635		Handle End, Side		Appelez-nous	-
12	Y0056856		Door Handle		Appelez-nous	-
13	0056634		Shim, Door Handle		Appelez-nous	-
14	0056679		Spacer, Door Handle		Appelez-nous	-
15	0056651		Anchor, Screw		Appelez-nous	-
16	0056567		Screw		Appelez-nous	-
17	56565		Rivet,pop		Appelez-nous	-
18	Y0056724		Cover, Screw		Appelez-nous	-
19	Y310637		Panel, Inner Door		Appelez-nous	-
20	56968		Pad,felt-adhesive Back		Appelez-nous	-
21	0056969		Sub 56999, Trim, Door Shelf		Appelez-nous	-
23	WP37001308		Door, Butter Compartment   (Replaces: 56970)			Immediately	$ 67.52
24	Y0056831		Clip, Medallion		Appelez-nous	-
25	Y0056971		Door, Utility		Appelez-nous	-
26	56888		Manual, Operation		Appelez-nous	-
27	Y0056577		Tray, Butter		Appelez-nous	-
28	Y0056571		Cap, Hinge Sleeve		Appelez-nous	-
29	Y310636		Gasket, Retainer, Side		Appelez-nous	-
30	Y310635		Gasket Retainer, Top & Bottom		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
