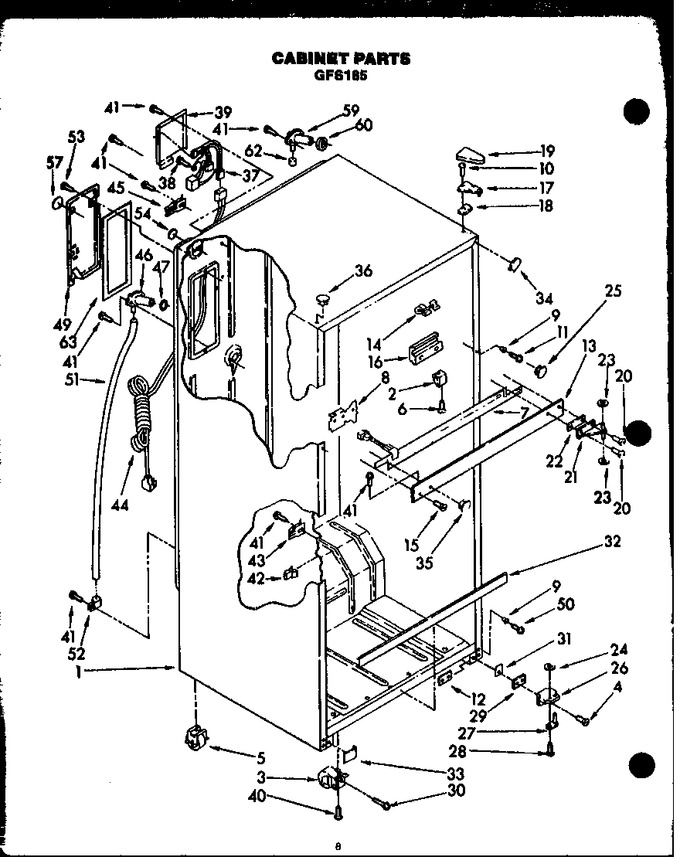

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 35 | 56590L | Hole Plug - Almond |
|
- | |||||
| 35 | 56590W | Hole Plug - White |
|
- | |||||
| 36 | 56625W | Hole Plug - White |
|
- | |||||
| 36 | 56625L | Hole Plug-almond |
|
- | |||||
| 39 | Y0056667 | Cover, Wiring |
|
- | |||||
| 40 | Y0056519 | Screw, 10-32 X 1/2 |
|
- | |||||
| 41 | Y0056568 | Screw |
|
- | |||||
| 42 | Y0056649 | Clip, Wire Retaining |
|
- | |||||
| 43 | 56591 | Thermostat,low Limit |
|
- | |||||
| 44 | Y0056645 | Service Cord |
|
- | |||||
| 45 | Y0056644 | Clamp |
|
- | |||||
| 46 | 56661 | Fitting, Drain |
|
- | |||||
| 47 | Y0056813 | Gasket, Drain Fitting |
|
- | |||||
| 49 | Y0056816 | Plug Assy. |
|
- | |||||
| 51 | 0056569 | Drain Tube |
|
- | |||||
| 52 | 56576 | Switch,temperature Sel |
|
- | |||||
| 53 | Y0056568 | Screw |
|
- | |||||
| 54 | Y0311646 | Hole Seal |
|
- | |||||
| 57 | 56952 | Hole Seal |
|
- | |||||
| 63 | Y0056815 | Gasket, Cover |
|
- |
