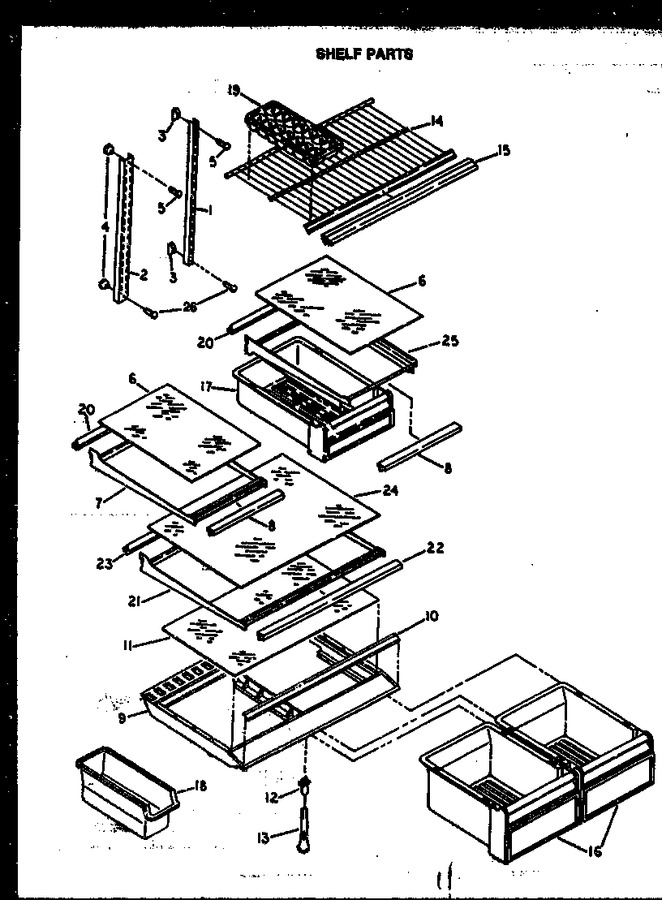

07 - Shelf Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0056895		Ladder, Shelf		Appelez-nous	-
2	Y0056916		Ladder, Shelf, Center		Appelez-nous	-
3	Y0056579		Screw		Appelez-nous	-
4	Y0056578		Screw		Appelez-nous	-
5	56552		Lockwasher		Appelez-nous	-
6	0056896		Glass, Meat Cover		Appelez-nous	-
7	Y0056899		Shelf Frame		Appelez-nous	-
8	56976		Assy,conversion Kit		Appelez-nous	-
9	0056986		Cover, Crisper		Appelez-nous	-
10	0056865		Trim, Crisper Cover		Appelez-nous	-
11	0056689		Glass, Crisper Cover		Appelez-nous	-
12	0056744		Support, Crisper		Appelez-nous	-
13	0056619		Post, Crisper		Appelez-nous	-
14	Y0056698		Shelf, Freezer		Appelez-nous	-
15	56978		Orifice,outer		Appelez-nous	-
16	0056973		Pan, Crisper		Appelez-nous	-
17	56977		Orifice,inner		Appelez-nous	-
18	56855		Receptacle,12 Circuit		Appelez-nous	-
19	Y0056622		Tray, Ice		Appelez-nous	-
20	56987		Reflector, Shelf		Appelez-nous	-
21	Y0056900		Frame, Shelf		Appelez-nous	-
22	56975		Assy,conversion Kit		Appelez-nous	-
23	Y0056989		Reflector, Shelf		Appelez-nous	-
24	0056988		Glass, Shelf		Appelez-nous	-
25	56890		Assy,valve-gas-single		Appelez-nous	-
26	Y0056513		Screw		Appelez-nous	-
