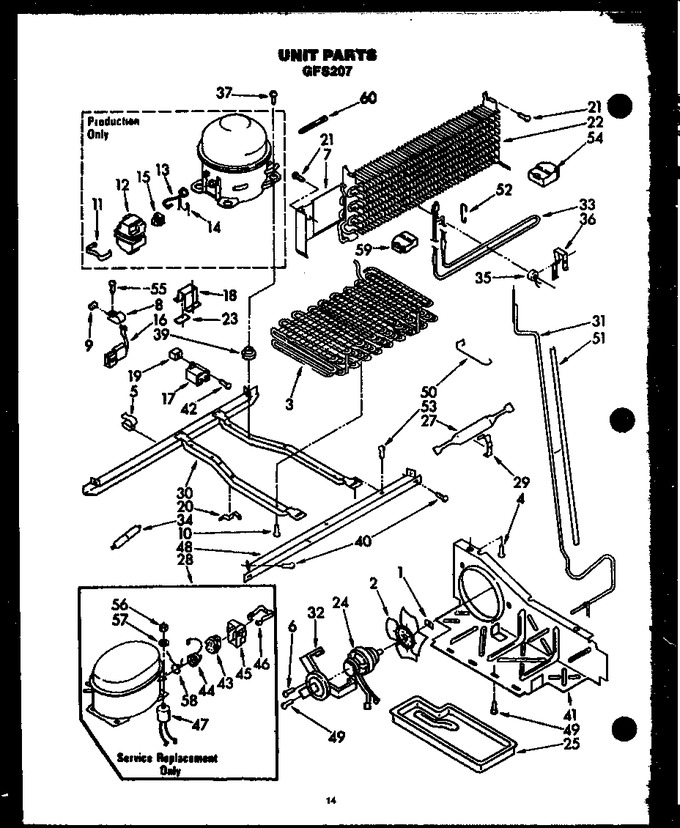

01 - Cabinet Parts


02 - Cabinet Parts


03 - Compartment Separator Parts


04 - Fz Door Parts


05 - Liner Parts


06 - Ref Door Parts


07 - Shelf Parts


08 - Unit Parts


09 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0056506		Speednut		Appelez-nous	-
2	Y0056730		Fan Blade		Appelez-nous	-
3	Y0056498		Condenser		Appelez-nous	-
4	56542		Sticker		Appelez-nous	-
5	56590		Thermostat,cool-down		Appelez-nous	-
6	56539		Buzzer,230/50		Appelez-nous	-
7	Y0056796		Heat Shield, Evaporator		Appelez-nous	-
8	0056573		Tube Clamp		Appelez-nous	-
9	Y0056574		Dampener		Appelez-nous	-
10	0056521		Sub 56543, Screw		Appelez-nous	-
11	56681		Spring, Case Retaining		Appelez-nous	-
12	Y0056756		Case, Relay		Appelez-nous	-
13	0056902		Overload		Appelez-nous	-
14	Y0056680		Spring, Overload		Appelez-nous	-
16	0056632		Housing Plug		Appelez-nous	-
17	0056908		Capacitor		Appelez-nous	-
19	Y0056570		Grommet		Appelez-nous	-
20	Y0056589		Clip		Appelez-nous	-
21	56505		Assy,wiring Harness		Appelez-nous	-
22	0056931		Evaporator		Appelez-nous	-
24	833697		Motor, Fan   (Replaces: Y0056804)			Immediately	$ 79.34
25	Y0056790		Sub 57068, Tray, Evaporator		Appelez-nous	-
27	W10843121		Drier   (Replaces: Y0056797)			Immediately	$ 47.31
28	W10439652		Compressor Assy   (Replaces: Y0056501)				$ 379.03
29	56587		Screw,1/4-20 Hex Hd Sh		Appelez-nous	-
30	Y0056795		Frame		Appelez-nous	-
31	56938		Bumper		Appelez-nous	-
32	Y0056588		Bracket, Fan Motor		Appelez-nous	-
33	0056798		Heater, Defrost		Appelez-nous	-
34	0056903		Muffler		Appelez-nous	-
35	WP4387499		Bimetal Defrost   (Replaces: Y0056939)				$ 108.77
36	Y0056830		Clamp		Appelez-nous	-
37	Y0056546		Screw		Appelez-nous	-
39	Y0056912		Grommet		Appelez-nous	-
40	Y0056528		Screw		Appelez-nous	-
