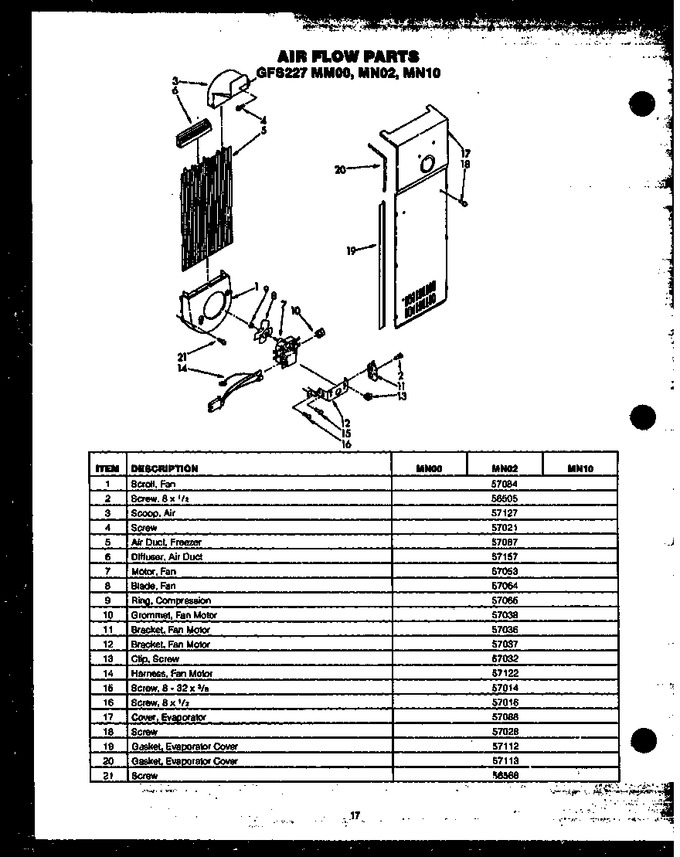

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0057084 | Fan Scroll |
|
- | |||||
| 2 | 56505 | Assy,wiring Harness |
|
- | |||||
| 3 | Y0057127 | Air Scoop |
|
- | |||||
| 4 | 0057021 | Sub 56545, Screw |
|
- | |||||
| 5 | Y0057087 | Air Duct, Freezer |
|
- | |||||
| 6 | Y0057157 | Diffuser, Air Duct |
|
- | |||||
| 7 | Y0057053 | Fan Motor |
|
- | |||||
| 8 | Y0057064 | Fan Blade |
|
- | |||||
| 9 | Y0057065 | Ring, Compression |
|
- | |||||
| 10 | Y0057038 | Grommet, Fan Motor |
|
- | |||||
| 11 | Y0057036 | Bracket, Fan Motor |
|
- | |||||
| 12 | 57037 | Manual, Operation |
|
- | |||||
| 13 | Y0057032 | Grommet, Screw |
|
- | |||||
| 14 | 57122 | Panel,control |
|
- | |||||
| 15 | Y0057014 | Screw |
|
- | |||||
| 16 | 0057016 | Sub 56535, Screw |
|
- | |||||
| 17 | 57088 | Manual, Operation |
|
- | |||||
| 18 | 0057028 | Sub 56545, Screw |
|
- | |||||
| 19 | 0057112 | Gasket, Evaporator Cover |
|
- | |||||
| 20 | 0057113 | Gasket, Sealing |
|
- | |||||
| 21 | Y0056568 | Screw |
|
- |
