SELECT A DIAGRAM

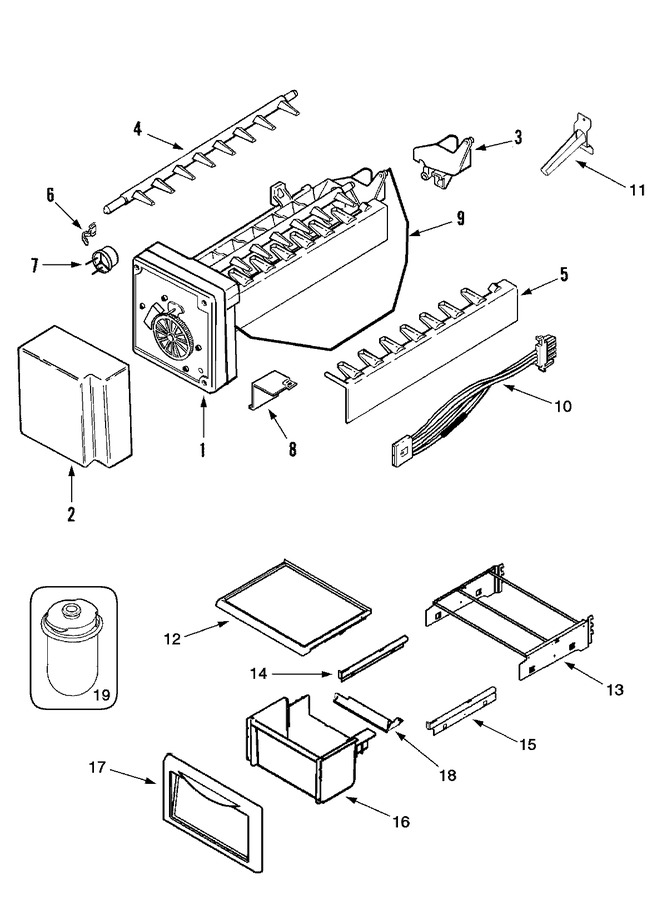

01 - Ice Maker Kit
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8281227 | Screw (Replaces: 61002819) | 10 |
|
$ 9.40 | ||||
| 1 | 67002578 | Ice Maker Assy. (230v) | 10 |
|
- | ||||
| 2 | 67001486 | Cover, Ice Maker | 10 |
|
- | ||||
| 3 | WP628356 | Inlet, Water (Replaces: 95100-1) | 10 |
|
$ 46.07 | ||||
| 4 | WP627843 | Ejector, Ice (Replaces: 95101-1) | 10 |
|
$ 75.24 | ||||
| 5 | WP2182124 | Stripper, Ice (Replaces: 95102-1) | 10 |
|
$ 77.45 | ||||
| 6 | WP2315522 | Retainer, Thermostat (Replaces: 95104-1) | 10 |
|
$ 9.95 | ||||
| 7 | WP627985 | Thermostat (Replaces: 95092-1) | 10 |
|
Immediately | $ 98.26 | |||
| 7 | 95093-1 | Cement, Alumilastic (4 Oz.) | 10 |
|
$ 49.64 | ||||
| 8 | WP2256087 | Bracket, Module & Heater (Replaces: 95107-1) | 10 |
|
$ 83.70 | ||||
| 8 | WP489128 | Screw, Bracket (Replaces: 95108-1) | 10 |
|
$ 9.79 | ||||
| 9 | W11807379 | Arm, Sensor (Replaces: 70142-1) | 10 |
|
Immediately | $ 54.18 | |||
| 10 | 67003439 | Wire Harness, Ice Maker | 10 |
|
- | ||||
| 11 | 67001421 | Trough, Fill Tube | 10 |
|
- | ||||
| 11 | WP8281227 | Screw (Replaces: 61002819) | 10 |
|
$ 9.40 | ||||
| 12 | 67001430 | Shelf, Freezer | 10 |
|
- | ||||
| 13 | 67001431 | Frame, Shelf | 10 |
|
- | ||||
| 14 | 67001432 | Glide, Ice Bin (lt) | 10 |
|
$ 50.40 | ||||
| 14 | 67001388 | Screw | 10 |
|
- | ||||
| 15 | 67001388 | Screw | 10 |
|
- | ||||
| 15 | 67001433 | Glide, Ice Bin (rt) | 10 |
|
- | ||||
| 16 | 67001434 | Bin, Ice | 10 |
|
$ 60.34 | ||||
| 17 | WP3400872 | Screw (Replaces: 61005481) | 10 |
|
$ 6.95 | ||||
| 17 | 67001429 | Front, Basket | 10 |
|
- | ||||
| 18 | 67001436 | Slide, Ice Maker | 10 |
|
- | ||||
| 18 | 67006425 | Screw (Replaces: 400017-35) | 10 |
|
Immediately | $ 6.26 | |||
| 19 | UKF7002AXX | Filter, Water | 10 |
|
- |
