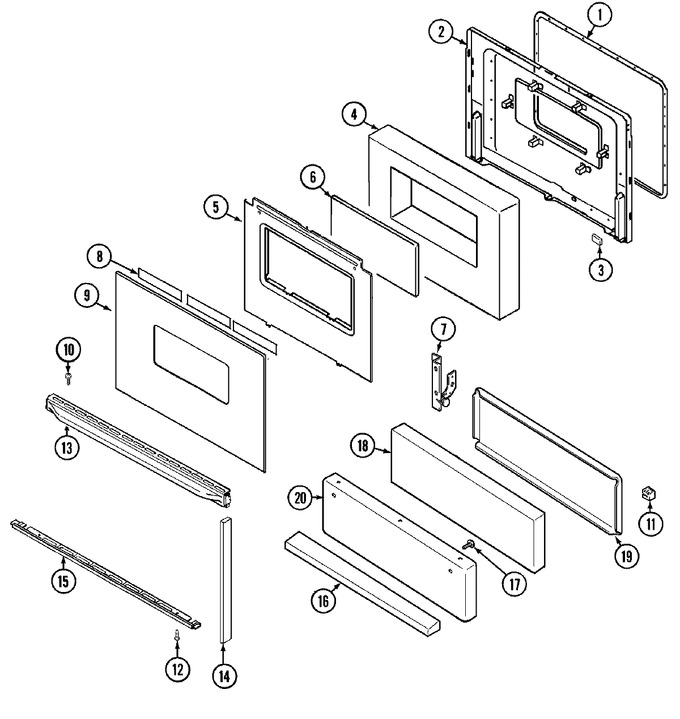

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	10		Immediately	$ 56.83
2	74005097		Lining, Door	10	Appelez-nous	-
3	8010P085-60		Spacer, Rubber	10	Appelez-nous	-
4	74002458		Insulation, Door	10	Appelez-nous	-
5	74002461		Baffle, Door	10	Appelez-nous	-
5	7101P209-60		Screw	10	Appelez-nous	-
6	74003910		Glass, Door (inner)	10	Appelez-nous	-
7	74002398		Hinge, Drawer	10	Appelez-nous	-
8	8270P095-60		Tape, Double Sided	10	Appelez-nous	-
9	74005314		Glass, Door (outer-blk)	10	Appelez-nous	-
10	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)	10			$ 15.94
11	8016P015-60		Glide	10			$ 5.65
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
13	74003429		Handle, Door (blk)	10			$ 93.87
14	74003430		End Cap, Door (blk)	10			$ 59.35
15	74003432		Trim, Bottom (blk)	10	Appelez-nous	-
16	2411F003-71		Handle, Door (wht)	10	Appelez-nous	-
17	74002481		Screw	10			$ 5.82
18	74001814		Insulation, Broiler Drawer	10	Appelez-nous	-
19	74002397		Lining, Drawer	10	Appelez-nous	-
20	74002663		Panel, Drawer (wht)	10	Appelez-nous	-
20	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
