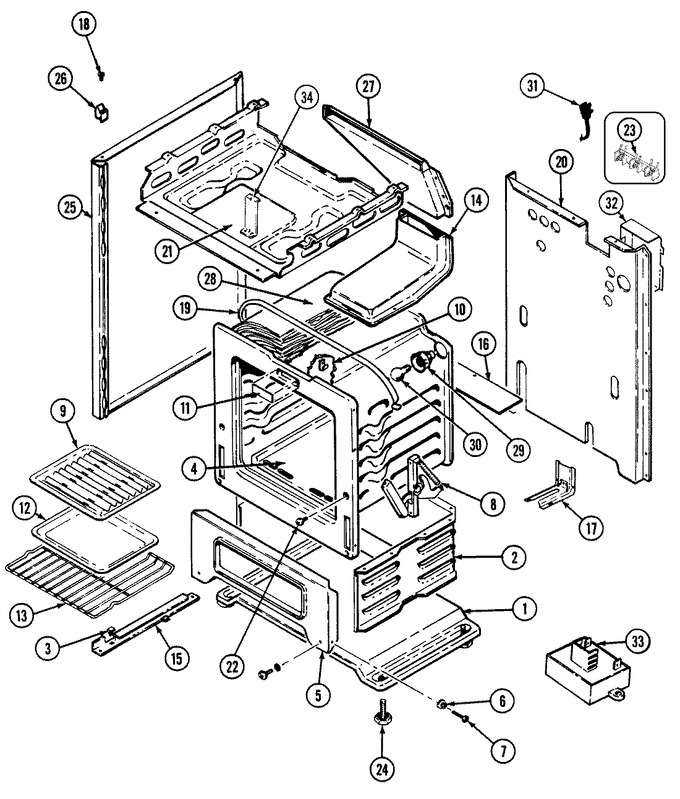

01 - Body/oven
02 - Control Panel
03 - Door/drawer
04 - Gas Controls
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4003W029-80 | Base | 14 |
|
- | ||||
| 2 | 4016F039-45 | Sides, Broiler | 14 |
|
- | ||||
| 2 | W11233072 | Screw (Replaces: 7101P290-60) | 14 |
|
Immediately | $ 12.62 | |||
| 3 | 8016P010-60 | Glide, Broiler Track | 14 |
|
- | ||||
| 4 | 3601F239-45 | Baffle, Oven Bottom | 14 |
|
- | ||||
| 4 | W11233072 | Screw (Replaces: 7101P290-60) | 14 |
|
Immediately | $ 12.62 | |||
| 4 | 5504M004-19 | Bottom, Oven Assy. | 14 |
|
- | ||||
| 5 | 2201F077-19 | Front, Broiler | 14 |
|
- | ||||
| 5 | WP74003976 | Screw W/washer (Replaces: 7101P124-60) | 14 |
|
$ 6.47 | ||||
| 6 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 14 |
|
$ 7.07 | ||||
| 7 | WPW10348409 | Screw (8abx13/16-zn) (Replaces: 74001449) | 14 |
|
Immediately | $ 6.98 | |||
| 8 | 7106P056-60 | Hinge | 14 |
|
- | ||||
| 9 | Y3413F01619 | Insert, Broil Pan | 14 |
|
- | ||||
| 10 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 14 |
|
Immediately | $ 11.07 | |||
| 11 | 8114P335-60 | Cover, Lock Slot | 14 |
|
- | ||||
| 12 | Y3401F02019 | Pan, Broil | 14 |
|
- | ||||
| 13 | WPW10282492 | Rack, Oven (Replaces: 7801P047-60) | 14 |
|
Immediately | $ 65.15 | |||
| 14 | 4006W113-45 | Box, Vent | 14 |
|
- | ||||
| 14 | WP74003976 | Screw W/washer (Replaces: 7101P124-60) | 14 |
|
$ 6.47 | ||||
| 15 | W11233072 | Screw (Replaces: 7101P290-60) | 14 |
|
Immediately | $ 12.62 | |||
| 15 | 3404F018-51 | Track, Drawer (rt) | 14 |
|
- | ||||
| 15 | 3404F021-51 | Track, Drawer (lt) | 14 |
|
- | ||||
| 16 | 3807F416-51 | Support, Oven Back Insulation | 14 |
|
- | ||||
| 16 | W11233072 | Screw (Replaces: 7101P290-60) | 14 |
|
Immediately | $ 12.62 | |||
| 17 | WP7101P485-60 | Screw (Replaces: 7101P344-60) | 14 |
|
$ 26.33 | ||||
| 17 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 14 |
|
Immediately | $ 4.69 | |||
| 18 | 7101P313-60 | Screw (8abx3/8-zn) | 14 |
|
- | ||||
| 19 | 4820F001-59 | Strap, Retainer | 14 |
|
- | ||||
| 20 | W11233072 | Screw (Replaces: 7101P290-60) | 14 |
|
Immediately | $ 12.62 | |||
| 20 | 8008P021-60 | Grommet, Snap | 14 |
|
- | ||||
| 20 | 4002F188-80 | Back, Main | 14 |
|
- | ||||
| 21 | W11233072 | Screw (Replaces: 7101P290-60) | 14 |
|
Immediately | $ 12.62 | |||
| 21 | 4011F209-80 | Box, Burner | 14 |
|
- | ||||
| 22 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 14 |
|
$ 4.29 | ||||
| 23 | 7401P037-60 | Block, Terminal | 14 |
|
- | ||||
| 24 | 7101P306-60 | Leg, Leveling | 14 |
|
- | ||||
| 25 | 2618F110-64 | Panel, Side (alm) | 14 |
|
- | ||||
| 25 | W11233072 | Screw (Replaces: 7101P290-60) | 14 |
|
Immediately | $ 12.62 | |||
| 26 | 8010P088-60 | Spacer, Main Top (rt) | 14 |
|
- | ||||
| 26 | 8010P087-60 | Spacer, Main Top (lt) | 14 |
|
- | ||||
| 27 | 4022W007-19 | Extension, Flue Box | 14 |
|
- | ||||
| 27 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 14 |
|
Immediately | $ 12.62 | |||
| 28 | 4804F032-60 | Insulation, Oven Wrapper | 14 |
|
- | ||||
| 28 | 4804F031-60 | Insulation, Oven Back | 14 |
|
- | ||||
| 29 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) | 14 |
|
Immediately | $ 66.10 | |||
| 30 | WP67002552 | Lamp, Oven (Replaces: 7407P027-60) | 14 |
|
Immediately | $ 10.58 | |||
| 31 | 7402P045-60 | Cord, Power | 14 |
|
- | ||||
| 32 | 4005F385-51 | Cover, Back Wire | 14 |
|
- | ||||
| 32 | W11233072 | Screw (Replaces: 7101P290-60) | 14 |
|
Immediately | $ 12.62 | |||
| 33 | 7510P046-60 | Regulator, Voltage | 14 |
|
- | ||||
| 33 | 7101P339-60 | Screw | 14 |
|
- | ||||
| 34 | W11233072 | Screw (Replaces: 7101P290-60) | 14 |
|
Immediately | $ 12.62 | |||
| 34 | 3807F431-45 | Support, Main Top | 14 |
|
- |
