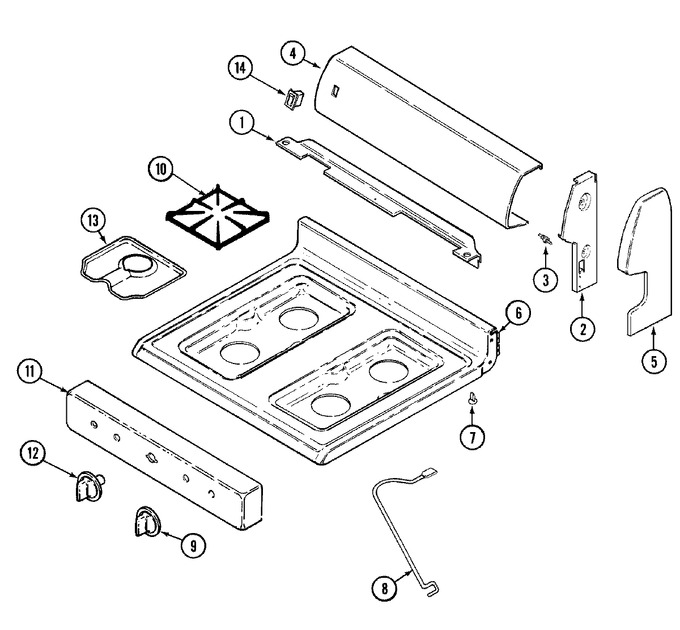

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74003182 | Shield, Vent Deflector | 10 |
|
- | ||||
| 1 | 74002409 | Clip, Spacer | 10 |
|
- | ||||
| 1 | 7101P209-60 | Screw | 10 |
|
- | ||||
| 2 | 74002403 | Bracket, Panel (rt) | 10 |
|
- | ||||
| 2 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 74002402 | Bracket, Panel (lt) | 10 |
|
- | ||||
| 3 | 74002404 | Pin, Main Top Hinge | 10 |
|
- | ||||
| 4 | 74004166 | Panel, Control (wht) | 10 |
|
- | ||||
| 4 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 10 |
|
$ 15.94 | ||||
| 4 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 5 | 74002407 | End Cap, Panel (rt-blk) | 10 |
|
- | ||||
| 5 | 74002432 | Screw (1 3/16``-blk) | 10 |
|
- | ||||
| 5 | 74002406 | End Cap, Panel (lt-blk) | 10 |
|
- | ||||
| 6 | 74002410 | Top, Main (wht) | 10 |
|
- | ||||
| 7 | 8016P015-60 | Glide | 10 |
|
$ 5.65 | ||||
| 8 | 74001170 | Support, Top | 10 |
|
- | ||||
| 9 | WP74002353 | Knob, Valve (blk) (Replaces: 74002353) | 10 |
|
$ 18.29 | ||||
| 10 | WP2003X030-00 | Grate (blk) (Replaces: 74001086) | 10 |
|
$ 157.41 | ||||
| 11 | 7109P015-60 | Washer | 10 |
|
- | ||||
| 11 | 74002411 | Panel, Manifold (blk) | 10 |
|
- | ||||
| 11 | WPW10068250 | Screw (Replaces: 7101P074-60) | 10 |
|
$ 3.66 | ||||
| 12 | 7731P077-60 | Knob, Thermostat (blk) | 10 |
|
- | ||||
| 13 | 1430283 | Drip Bowl Kit (accessory) (Replaces: 5401A433-60) | 10 |
|
$ 95.86 | ||||
| 14 | 7403P067-60 | Switch, Rocker (blk) | 10 |
|
$ 91.35 | ||||
| 15 | 74002657 | Manual, Use & Care | 10 |
|
- | ||||
| 16 | 16002079 | Guide, Quick Ref - Admiral | 10 |
|
- |
