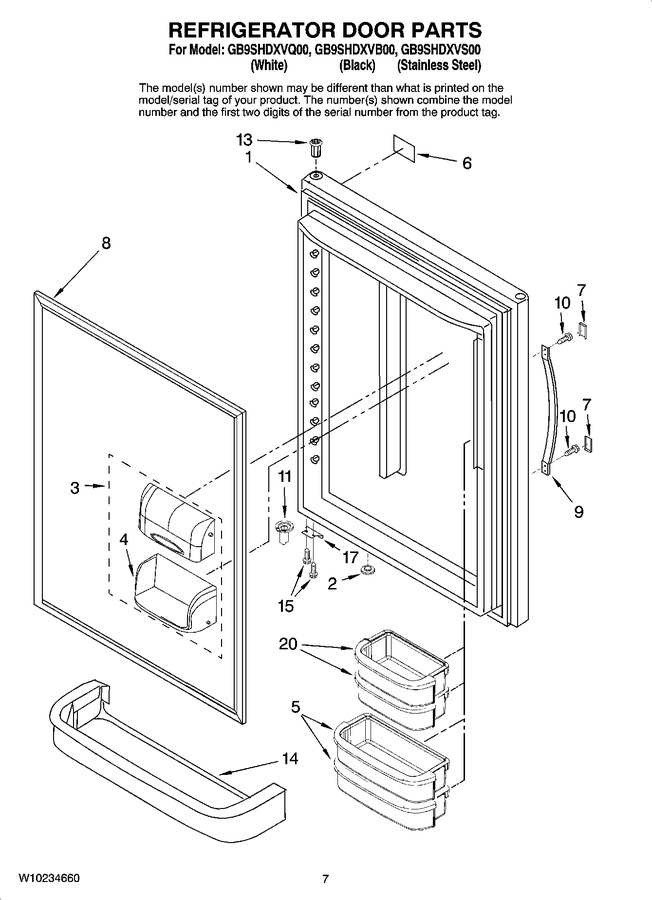

04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67001138		Refrigerator Door (w/ Insulation) (white)				$ 514.71
1	12658501BQ		Refrigerator Door (w/ Insulation) (black)   (Replaces: 67001136)				$ 633.27
1	13023857SQ		Refrigerator Door (w/ Insulation) (stainless)		Appelez-nous	-
2	10712401		Plug, Vent (white)				$ 7.79
2	67004838		Plug, Vent (black)				$ 10.09
3	WP12744905		Door, Dairy   (Replaces: 67003819)				$ 102.59
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 79.21
5	WPW10371194		Bucket (2) (medium)   (Replaces: 67003777)			Immediately	$ 69.51
6	2220214		Nameplate				$ 32.43
7	67002682		Trim, Handle (white)				$ 12.84
7	67002680		Trim, Handle (black)				$ 7.65
8	WPW10443309		Gasket, Door Magnetic (white)   (Replaces: W10164030)			Immediately	$ 328.72
8	WPW10436245		Gasket, Door Magnetic (black)   (Replaces: W10164031)			Immediately	$ 326.12
9	WP2217185B		Handle, Door (black)   (Replaces: 67002679)				$ 171.13
9	67002677		Handle, Door (white)		Appelez-nous	-
10	67006682		Screw		Appelez-nous	-
11	WP67003638		Closure, Door (white)   (Replaces: 67003638)			Immediately	$ 7.34
11	WP67003639		Closure, Door (black)   (Replaces: 67003639)			Immediately	$ 81.29
13	67004978		Bushing (black)			Immediately	$ 19.89
13	WP67004977		Bushing (white)   (Replaces: 67004977)				$ 7.38
14	12690501		Retainer, Door				$ 41.75
15	WP98165		Screw   (Replaces: 67006287)				$ 7.71
17	W11708403		Stop, Door (black)   (Replaces: 67003780)				$ 13.28
17	12968202W		Stop, Door (white)   (Replaces: 67003779)				$ 62.36
20	WPW10351081		Bucket (2) (small)   (Replaces: 67003778)			Immediately	$ 78.22
