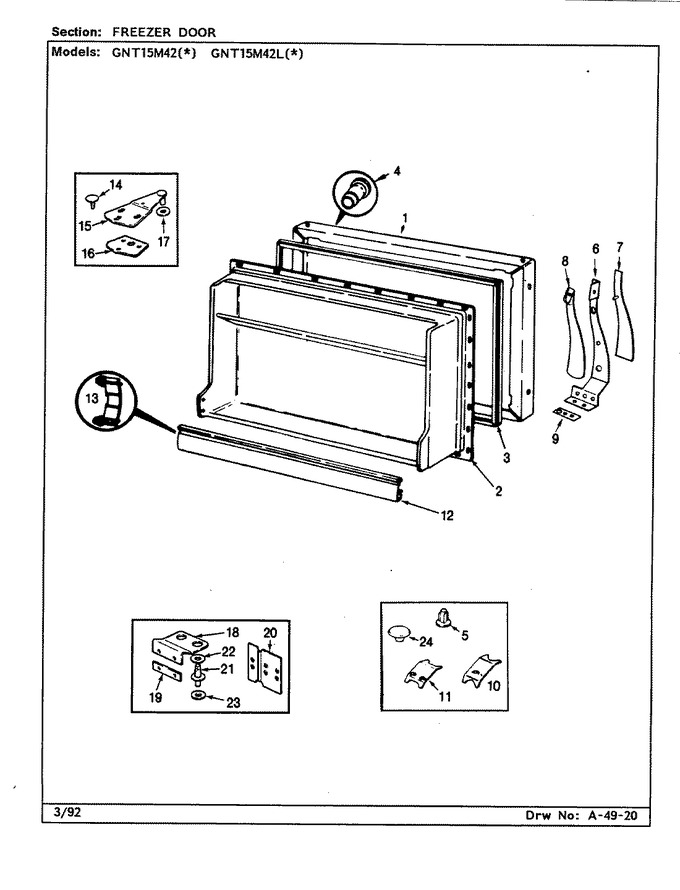

01 - Freezer Door


02 - Fresh Food Compartment


03 - Fresh Food Door


04 - Shelves & Accessories


05 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68470-2-AM		Panel, Frz. Door (alm)		Appelez-nous	-
1	RA95056-1		Door Insulation Kit		Appelez-nous	-
1	68470-2-WW		Panel, Frz. Door (wht)		Appelez-nous	-
2	65930-5		Liner, Door		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
3	66199-1		Gasket, Door		Appelez-nous	-
4	29356-1		Retainer, Nameplate		Appelez-nous	-
5	55782-6		Plug Button (almond)		Appelez-nous	-
5	55782-10		Plug Button, Hdle & Door Stop		Appelez-nous	-
6	65275-57		Screw		Appelez-nous	-
6	66255-1		Door Handle		Appelez-nous	-
7	68959-3		Insert		Appelez-nous	-
8	65275-53		Screw		Appelez-nous	-
8	60445-2		Insert		Appelez-nous	-
9	68776-1		Shim Handle----na		Appelez-nous	-
10	56209-3		Clip, Stop Screw		Appelez-nous	-
11	60123-2		Clip, Stop Screw		Appelez-nous	-
12	WP61003045		Trim, Door Shelf   (Replaces: 65151-95)				$ 129.55
13	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
14	56144-13		Plug Button, Upper Hinge (wht)		Appelez-nous	-
14	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
15	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
15	53709-20		Hinge, Upper		Appelez-nous	-
16	65031-1		Shim, Upper Hinge		Appelez-nous	-
17	54233-1		Washer				$ 7.71
18	65275-55		Screw		Appelez-nous	-
18	68811-2		Hinge, Center		Appelez-nous	-
19	68812-1		Shim, Center Hinge		Appelez-nous	-
20	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
21	67322-1		Pin, Center Hinge		Appelez-nous	-
22	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
23	54233-2		Washer		Appelez-nous	-
24	67634-3		Plug Button, Hinge Cup (alm)		Appelez-nous	-
24	67634-2		Plug Button, Hinge Cup (wht)		Appelez-nous	-
