SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment

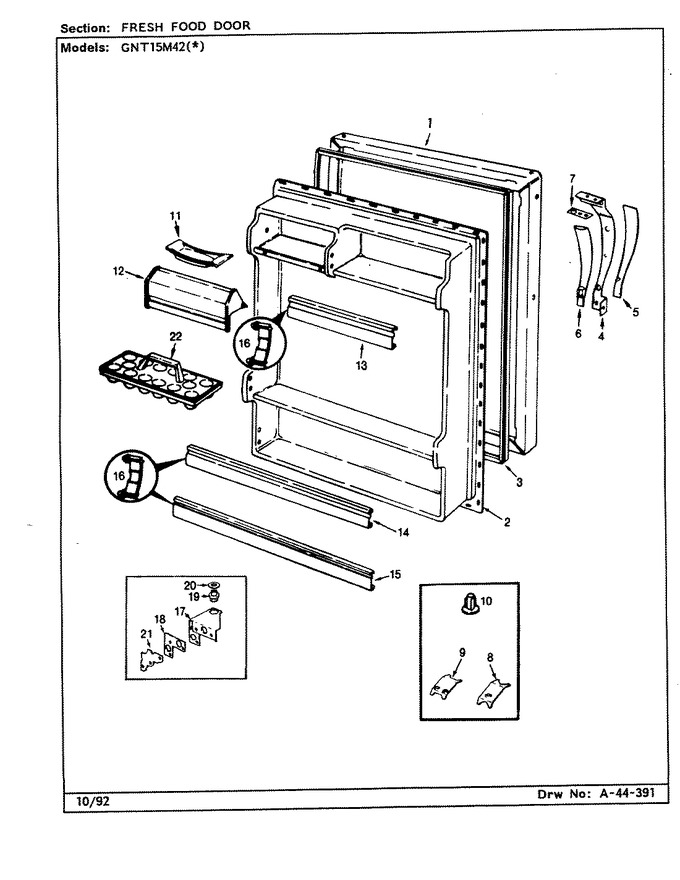

04 - Fresh Food Door


05 - Shelves & Accessories


06 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA95056-1		Door Insulation Kit		Appelez-nous	-
1	68469-1-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	65935-14		Liner, F.f. Door		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
3	66199-2		Gasket, Door		Appelez-nous	-
4	66255-2		Door Handle		Appelez-nous	-
4	65275-57		Screw		Appelez-nous	-
5	68959-3		Insert		Appelez-nous	-
6	60445-2		Insert		Appelez-nous	-
6	65275-53		Screw		Appelez-nous	-
7	68776-1		Shim Handle----na		Appelez-nous	-
8	56209-3		Clip, Stop Screw		Appelez-nous	-
9	60123-2		Clip, Stop Screw		Appelez-nous	-
10	55782-6		Plug Button (almond)		Appelez-nous	-
11	29936-2		Tray, Butter		Appelez-nous	-
12	69058-1		Door, Dairy		Appelez-nous	-
13	WP61003045		Trim, Door Shelf   (Replaces: 65151-24)				$ 129.55
14	WP61003045		Trim, Door Shelf   (Replaces: 65151-95)				$ 129.55
15	WP61003045		Trim, Door Shelf   (Replaces: 65151-113)				$ 129.55
16	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
17	67714-6		Hinge, Lower		Appelez-nous	-
17	403100-1		Screw		Appelez-nous	-
18	60626-1		Shim, Lower Hinge		Appelez-nous	-
19	68788-1		Hinge Pin		Appelez-nous	-
21	403100-1		Screw		Appelez-nous	-
21	65790-3		Tapping Plate		Appelez-nous	-
22	60066-1		Tray, Egg		Appelez-nous	-
