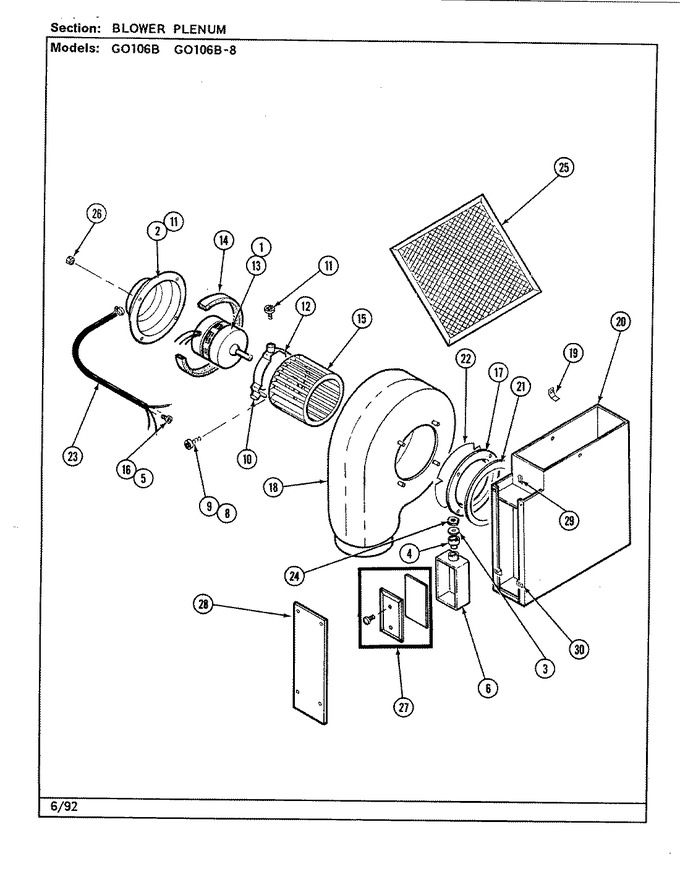

01 - Blower Plenum
02 - Burner Box
03 - Escutcheon Assembly
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y712613 | Motor Assy. | 1 |
|
- | ||||
| 2 | Y704760 | Cover, Motor | 1 |
|
- | ||||
| 3 | 705185 | Washer, Sealing | 1 |
|
- | ||||
| 4 | 705187 | Connector, Conduit | 1 |
|
- | ||||
| 5 | 705186 | Relief, Strain | 1 |
|
- | ||||
| 6 | 705184 | Box, Single Gang | 1 |
|
- | ||||
| 7 | 702889 | Locknut Cap, W/nylon Insert | 1 |
|
- | ||||
| 8 | 707161 | Nut | 1 |
|
- | ||||
| 9 | Y707402 | Screw | 1 |
|
- | ||||
| 10 | WP71003558 | Isolator (Replaces: Y708926) | 1 |
|
$ 11.47 | ||||
| 11 | 707407 | Screw | 1 |
|
$ 6.42 | ||||
| 12 | Y707393 | Band, Motor | 1 |
|
- | ||||
| 13 | Y704759 | Motor | 1 |
|
- | ||||
| 14 | WPY04100165 | Element, Conv.(6`` 240v) (Replaces: 715927) | 1 |
|
Immediately | $ 50.62 | |||
| 15 | WPY707985 | Wheel, Blower (Replaces: Y707985) | 1 |
|
Immediately | $ 145.55 | |||
| 16 | Y705177 | Bushing, Plenum | 1 |
|
- | ||||
| 17 | Y704758 | Ring, Inlet | 1 |
|
- | ||||
| 18 | 712008 | Scroll, Blower Assy. | 1 |
|
- | ||||
| 19 | Y707688 | Retainer, Filter | 1 |
|
- | ||||
| 20 | Y701840 | Plenum | 1 |
|
- | ||||
| 21 | Y704761 | Ring, Restrictor | 1 |
|
- | ||||
| 22 | Y704762 | Retainer | 1 |
|
- | ||||
| 23 | 705178 | Cord, Power | 1 |
|
- | ||||
| 24 | 705182 | Washer, Reducing | 1 |
|
- | ||||
| 25 | WP707929 | Filter, Grease (Replaces: 707929) | 1 |
|
Immediately | $ 44.51 | |||
| 26 | WPY707702 | Locknut (Replaces: Y707702) | 1 |
|
Immediately | $ 6.26 | |||
| 27 | Y705183 | Cover Assy. | 1 |
|
- | ||||
| 28 | Y700464 | Plate, Cover | 1 |
|
- | ||||
| 28 | WP59002061 | Screw (Replaces: Y707172) | 1 |
|
$ 6.98 | ||||
| 28 | 703618 | Wire, Ground | 1 |
|
- | ||||
| 28 | 703003 | Screw | 1 |
|
- | ||||
| 29 | Y700834 | Clip | 1 |
|
- | ||||
| 30 | Y707831 | Clip | 1 |
|
- |
