View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Blower Plenum
02 - Burner Box

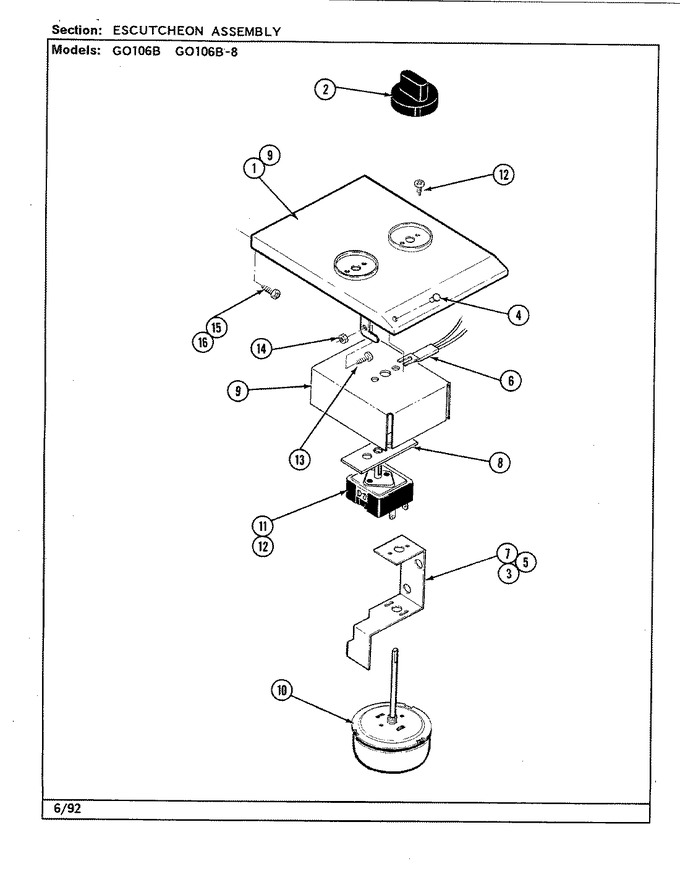

03 - Escutcheon Assembly
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71003268 | Escutcheon | 1 |
|
- | ||||
| 2 | 7737P077-60 | Knob, Switch (Replaces: 705207) | 1 |
|
$ 45.19 | ||||
| 4 | 705191 | Lens, Pilot Light | 1 |
|
- | ||||
| 5 | WP90767 | Screw (Replaces: 715773) | 1 |
|
Immediately | $ 7.04 | |||
| 6 | 705196 | Light, Pilot | 1 |
|
- | ||||
| 7 | 704333 | Bracket, Timer (rt) | 1 |
|
- | ||||
| 8 | Y705255 | Gasket, Switch | 1 |
|
- | ||||
| 9 | 705188 | Gasket, Escutcheon | 1 |
|
- | ||||
| 10 | 707732 | Timer | 1 |
|
- | ||||
| 11 | W11121638 | Switch, Infinite (Replaces: 705190) | 1 |
|
$ 149.18 | ||||
| 12 | Y703935 | Screw | 1 |
|
- | ||||
| 13 | WP488234 | Screw (Replaces: 708861) | 1 |
|
$ 6.07 | ||||
| 14 | WP488130 | Nut (Replaces: Y701396) | 1 |
|
$ 6.27 | ||||
| 15 | W11233072 | Screw (Replaces: Y705007) | 1 |
|
Immediately | $ 12.62 | |||
| 16 | 700934 | Ballast | 1 |
|
- | ||||
| 17 | 16000448 | Manual, Service-no Refund | 1 |
|
- |
