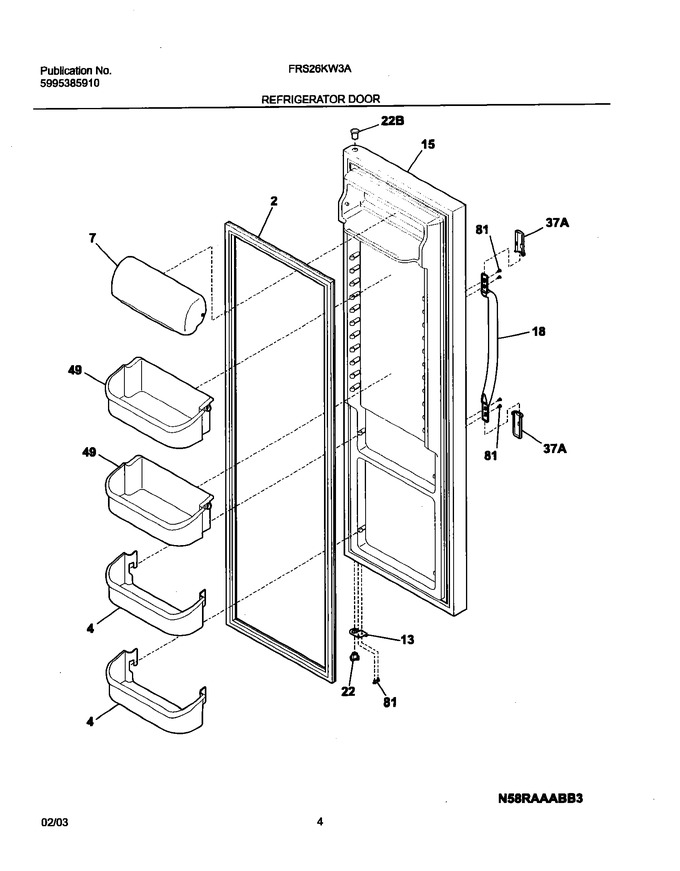

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240323001 | Bin-door,pseudo ,bottom |
|
Immediately | $ 42.81 | ||||
| 7 | 240326203 | Door-dairy |
|
$ 40.37 | |||||
| 13 | 5303918455 | Door Stop,white,ref (Replaces: 240537101) |
|
$ 142.04 | |||||
| 15 | 240451931 | Door-refr,white ,complete Assy |
|
- | |||||
| 18 | 218668401 | Handle-door, White |
|
$ 74.97 | |||||
| 22 | 240328201 | Bearing-hinge,closer (Replaces: 240561601) |
|
Immediately | $ 17.72 | ||||
| 49 | 240356401 | Bin-door,gallon |
|
Immediately | $ 85.64 | ||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 22B | 240328401 | Bearing-hinge,upper |
|
$ 12.97 | |||||
| 37A | 218811648 | Trim-handle,4.97`` ,white ,w/lock |
|
$ 52.31 | |||||
| F2 | 241786013 | Gasket-refr Door,white ,magnetic (Replaces: 240390601) |
|
$ 95.90 |
