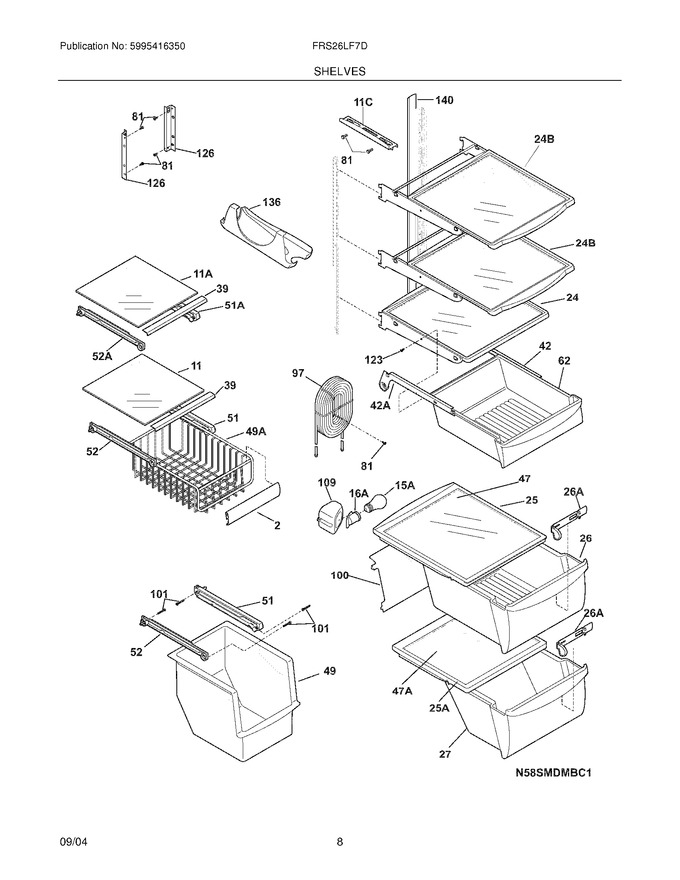

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241510604		Trim-basket				$ 74.08
11	240443344		Shelf-freezer,glass ,lower		Appelez-nous	-
24	240355203		Shelf-``spill-safe``,cantilever ,half Width,fixed   (Replaces: 240355207)				$ 379.94
25	240350702		Cover-crisper Pan,upper			Immediately	$ 41.92
26	240351061		Pan-crisper,upper   (Replaces: 240351005)			Immediately	$ 110.01
27	240351240		Pan-crisper,lower   (Replaces: 240351205)				$ 203.45
39	240367602		Trim-shelf,front				$ 45.36
42	240356501		Track,meat Pan Hanger ,rh			Immediately	$ 56.70
47	240350649		Insert-pan Cover,glass   (Replaces: 240350633)			Immediately	$ 123.89
49	240564401		Basket-sliding			Immediately	$ 158.90
51	240343002		Hanger-basket,rh				$ 65.22
52	240343102		Hanger-basket,lh				$ 69.77
62	240342830		Pan-meat   (Replaces: 240342805)				$ 85.99
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
97	240545302		Water Tank Assy,coiled Tubing ,front Filter   (Replaces: 240545303)				$ 280.67
100	240326304		Cover-water Tank   (Replaces: 240326302)				$ 73.57
101	218493101		Screw,hex Washer Head `8-18ab X 1-3/4   (Replaces: 218493100)				$ 13.46
109	240351301		Base-crisper Light Socket				$ 15.65
123	215005101		Screw,hanger/rlr Mtg ,8-10 X 0.438   (Replaces: 215005100)				$ 14.89
126	241674401		Channel,auger Mtg ,lh   (Replaces: 218867405)				$ 47.48
126	241674402		Channel,auger Mtg ,rh   (Replaces: 218867406)				$ 43.24
136	240424501		Dispenser-can,white		Appelez-nous	-
140	240430501		Channel,wtr Tube Cover				$ 97.81
11A	240443343		Shelf-freezer,glass ,upper		Appelez-nous	-
11C	240324101		Shelf-pizza				$ 59.91
15A	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
24B	240350150		Shelf-``spill-safe``,cantilever ,sliding   (Replaces: 240350108)				$ 176.70
25A	240350903		Cover-crisper Pan,lower   (Replaces: 240350902)			Immediately	$ 91.99
26A	240362201		Control-humidity				$ 69.46
42A	240356702		Seal-meat Pan		Appelez-nous	-
42A	240349701		Hanger-meat Pan,lh			Immediately	$ 58.12
42A	240349901		Block-meat Pan Rail,lh				$ 67.01
42A	240350001		· Spring-meat Pan Rail				$ 76.55
47A	240350603		Insert-pan Cover,glass			Immediately	$ 115.52
49A	240530502		Basket-sliding,upper ,half				$ 201.08
51A	240395502		Hanger-basket,rh				$ 73.00
52A	240395602		Hanger-basket,lh				$ 61.66
F101	5304455650		Screw,hex Wshr Hd ,8-18ab X 0.750 ,gusset/hanger   (Replaces: 215005000)				$ 14.18
F16A	241537602		Harness-wiring		Appelez-nous	-
F16A	218906802		Socket-light   (Replaces: 241513901)				$ 17.72
NI	240349801		Clip-slide,pan-crisper				$ 20.48
NI	240362101		Clip-slide,cover-crisper				$ 47.03
