Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 72347-1-AM Panel, F.f. Door (alm) 10 Appelez-nous -
2 W10856122 Screw   (Replaces: 65275-80) 10 Special Order $ 6.98

2 12000052 Kit, Handle Assy. (alm) 10 Appelez-nous -
3 67483-3 Washer, Lower Hinge   (Replaces: 67483-2) 10 In-Stock Immediately $ 45.86

4 67874-1 Tapping Plate, Lower Hinge 10 Appelez-nous -
4 65275-59 Screw 10 Appelez-nous -
5 WP3-24838-048 Screw, Upper Hinge   (Replaces: 65275-86) 10 Special Order $ 7.00

5 53709-28 Hinge, Upper 10 Appelez-nous -
6 69510-1 Shim, Lower Hinge 10 Appelez-nous -
7 65031-1 Shim, Upper Hinge 10 Appelez-nous -
8 69516-2 Hinge, Lower (blk) 10 Appelez-nous -
8 65275-51 Screw, Lower Hinge 10 Appelez-nous -
9 69845-1 Pin, Lower Hinge 10 Special Order $ 44.55


    View Diagram in Separate Window     Print Icon   Print Part List

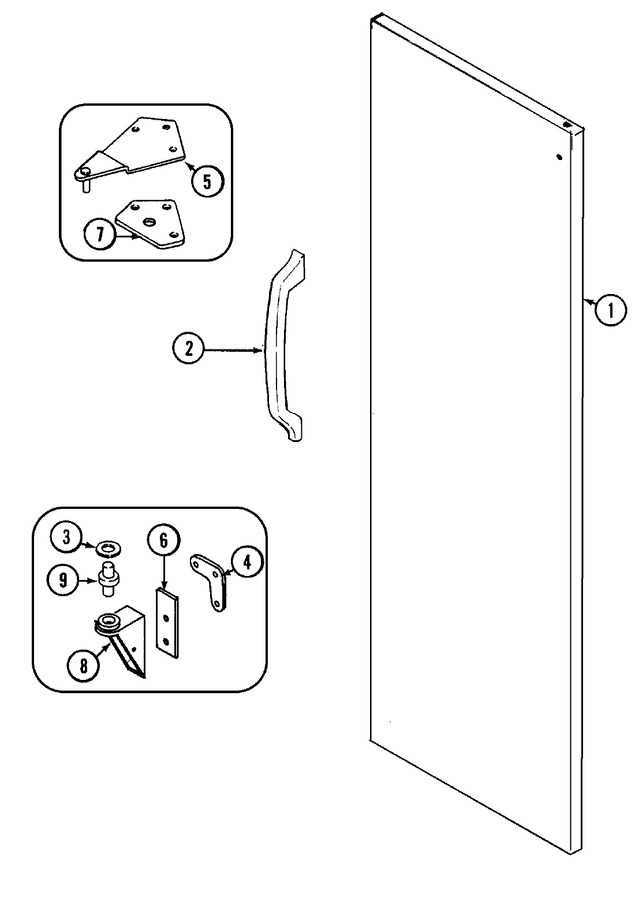

Diagram for GS20A73A
