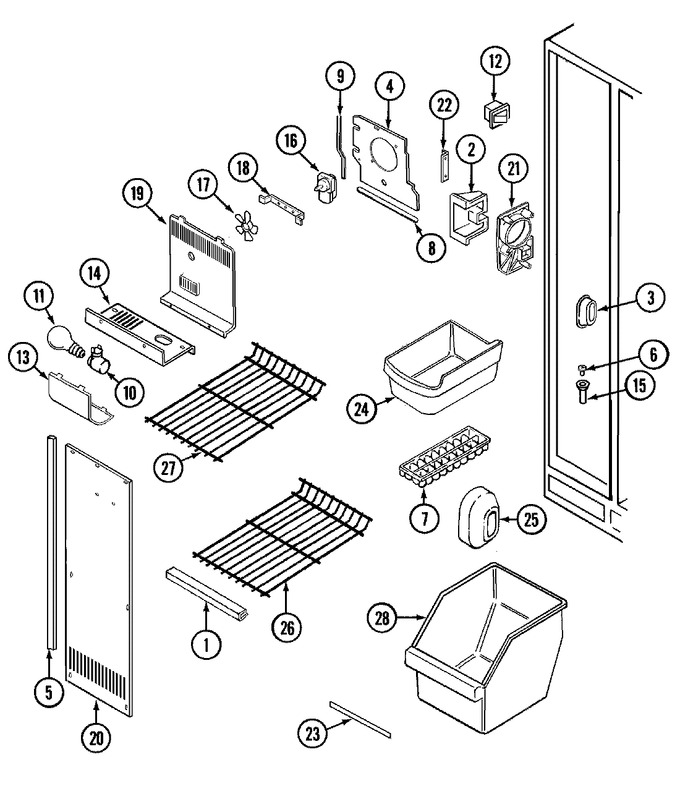

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 61001163 | Trim, Shelf | 10 |
|
- | ||||
| 2 | 67353-1 | Shield, Air Directional | 10 |
|
- | ||||
| 3 | 53727-1 | Retainer, Air Tunnel | 10 |
|
- | ||||
| 3 | 70034-1 | Retainer, Air Return | 10 |
|
- | ||||
| 4 | 67297-5 | Cover, Coil (upper) | 10 |
|
- | ||||
| 5 | 69314-1 | Seal Cover (side) | 10 |
|
- | ||||
| 6 | 52526-1 | Grommet | 10 |
|
- | ||||
| 7 | WP841180A | Tray, Ice (Replaces: 59281-2) | 10 |
|
Immediately | $ 41.00 | |||
| 8 | 68946-4 | Seal | 10 |
|
- | ||||
| 9 | 66325-21 | Seal (44``) | 10 |
|
- | ||||
| 10 | 68974-3 | Receptacle, Bulb | 10 |
|
- | ||||
| 11 | WP67002552 | Bulb, Light (40w-230v) (Replaces: 24082-1) | 10 |
|
Immediately | $ 10.58 | |||
| 12 | W11384469 | Switch, Light (Replaces: 66987-1) | 10 |
|
Immediately | $ 33.51 | |||
| 13 | 67292-1 | Shield, Light | 10 |
|
- | ||||
| 14 | W11233072 | Screw (Replaces: 400015-36) | 10 |
|
Immediately | $ 12.62 | |||
| 14 | 67344-3 | Support, Light Shield | 10 |
|
- | ||||
| 15 | 26527-11 | Tube, Drain | 10 |
|
- | ||||
| 16 | 403067-1 | Screw | 10 |
|
- | ||||
| 16 | 70039-1 | Wire Harness Freezer | 10 |
|
- | ||||
| 16 | 69298-2 | Motor, Fan | 10 |
|
- | ||||
| 17 | 52120-4 | Blade, Evaporator Fan | 10 |
|
- | ||||
| 18 | 64856-1 | Bracket, Fan Motor | 10 |
|
- | ||||
| 18 | WP488729 | Screw (Replaces: 9986-45) | 10 |
|
Immediately | $ 7.01 | |||
| 19 | 67225-1 | Shield, Fan | 10 |
|
- | ||||
| 20 | 67335-2 | Cover, Coil Lower | 10 |
|
- | ||||
| 20 | W11233072 | Screw (Replaces: 400015-36) | 10 |
|
Immediately | $ 12.62 | |||
| 21 | 67352-1 | Orifice, Frz. Control (outlet) | 10 |
|
- | ||||
| 22 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 | ||||
| 22 | 67288-1 | Bracket, Mounting | 10 |
|
- | ||||
| 23 | 68124-96 | Insert, Drawer Handle | 10 |
|
- | ||||
| 24 | WP67001255 | Pan, Ice (Replaces: 68346-1) | 10 |
|
$ 182.77 | ||||
| 25 | 67837-1 | Insulation, Air Return | 10 |
|
- | ||||
| 26 | 66603-42 | Shelf, 2,3, & 4 | 10 |
|
- | ||||
| 27 | 66603-37 | Shelf, 1 | 10 |
|
- | ||||
| 28 | 66636-131 | Drawer, Frz. | 10 |
|
- |
