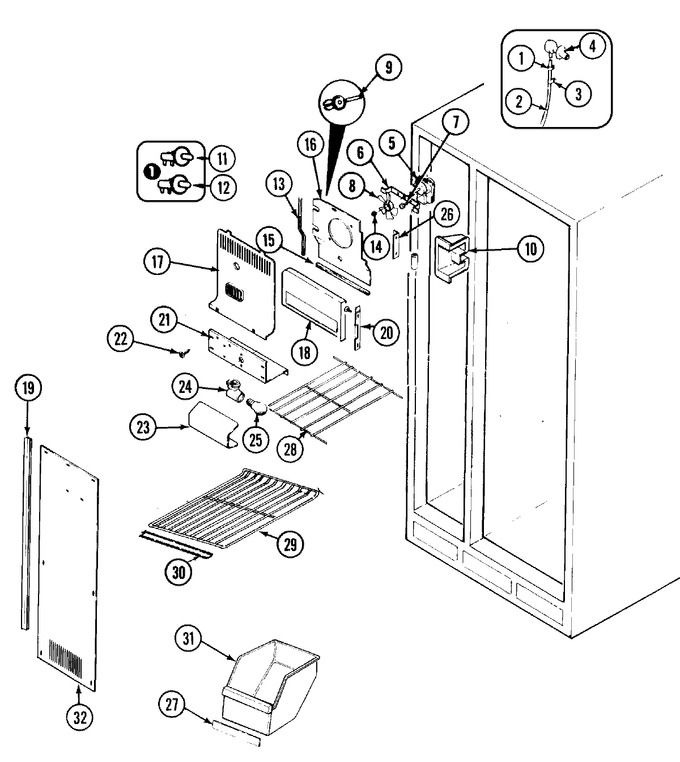

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPM0114003 | Clamp, Spring (Replaces: 60333-4) | 10 |
|
$ 9.95 | ||||
| 2 | WPB5705307 | Tubing, Valve To Grommet (Replaces: 67579-6) | 10 |
|
$ 11.19 | ||||
| 3 | 65517-1 | Clip | 10 |
|
- | ||||
| 5 | 70140-1 | Wire Harness, Freezer Adapter | 10 |
|
- | ||||
| 5 | 69298-2 | Motor, Fan | 10 |
|
- | ||||
| 6 | 64856-1 | Bracket, Fan Motor | 10 |
|
- | ||||
| 7 | WP488729 | Screw (Replaces: 9986-45) | 10 |
|
Immediately | $ 7.01 | |||
| 8 | 52120-4 | Blade, Evaporator Fan | 10 |
|
- | ||||
| 9 | 22715-6 | Rivet | 10 |
|
- | ||||
| 10 | 67353-1 | Shield, Air Directional | 10 |
|
- | ||||
| 11 | 68058-1 | Switch, Interlock | 10 |
|
- | ||||
| 12 | W11384469 | Switch, Light (Replaces: 66987-1) | 10 |
|
Immediately | $ 33.51 | |||
| 13 | 66325-21 | Seal (44``) | 10 |
|
- | ||||
| 14 | 420092-900 | Washer, Spring | 10 |
|
- | ||||
| 15 | 68946-4 | Seal | 10 |
|
- | ||||
| 16 | 67297-5 | Cover, Coil (upper) | 10 |
|
- | ||||
| 17 | 61001759 | Shield, Fan | 10 |
|
- | ||||
| 18 | 60313-1 | Cup, Shelf | 10 |
|
- | ||||
| 18 | 69874-8 | Front, Bin | 10 |
|
- | ||||
| 19 | 400015-12 | Screw | 10 |
|
- | ||||
| 19 | W11772394 | Screw (Replaces: 400021-1) | 10 |
|
Immediately | $ 10.94 | |||
| 19 | 69314-1 | Seal Cover (side) | 10 |
|
- | ||||
| 20 | 68572-1 | Latch | 10 |
|
- | ||||
| 20 | W11772394 | Screw (Replaces: 400021-1) | 10 |
|
Immediately | $ 10.94 | |||
| 20 | 68621-1 | Spacer | 10 |
|
- | ||||
| 21 | 67296-2 | Box, Auger Motor | 10 |
|
- | ||||
| 22 | 400015-12 | Screw | 10 |
|
- | ||||
| 23 | 67292-1 | Shield, Light | 10 |
|
- | ||||
| 24 | 68974-3 | Receptacle, Bulb | 10 |
|
- | ||||
| 25 | WP67002552 | Bulb, Light (40w-230v) (Replaces: 24082-1) | 10 |
|
Immediately | $ 10.58 | |||
| 26 | 53727-1 | Retainer, Air Tunnel | 10 |
|
- | ||||
| 26 | 26527-11 | Tube, Drain | 10 |
|
- | ||||
| 26 | 67288-1 | Bracket, Mounting | 10 |
|
- | ||||
| 26 | 52526-1 | Grommet | 10 |
|
- | ||||
| 27 | 68124-96 | Insert, Drawer Handle | 10 |
|
- | ||||
| 28 | 68630-5 | Shelf, Dispenser | 10 |
|
- | ||||
| 28 | 67466-1 | Cup, Shelf | 10 |
|
- | ||||
| 29 | 66603-42 | Shelf, 2,3, & 4 | 10 |
|
- | ||||
| 30 | 70137-1 | Trim, Shelf | 10 |
|
- | ||||
| 31 | 66636-131 | Drawer, Frz. | 10 |
|
- | ||||
| 32 | 67335-4 | Cover, Coil (lower) | 10 |
|
- |
