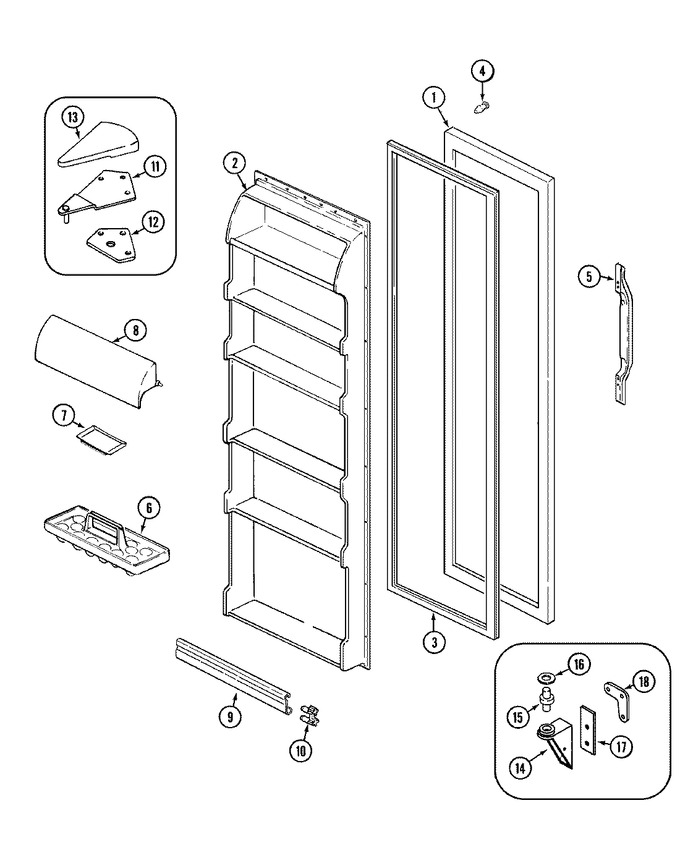

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Freezer Compartment
02 - Freezer Door
03 - Fresh Food Compartment
04 - Fresh Food Door
05 - Shelves & Accessories
06 - Unit Compartment & System
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72347-1-WW | Panel, F.f. Door (wht) | 10 |
|
- | ||||
| 1 | 495034-900 | Plug Button, Door | 10 |
|
- | ||||
| 2 | 65275-5 | Screw | 10 |
|
- | ||||
| 2 | 69238-1 | Liner, F.f. Door | 10 |
|
- | ||||
| 3 | 70024-3 | Gasket | 10 |
|
- | ||||
| 4 | 29356-1 | Retainer, Nameplate | 10 |
|
- | ||||
| 5 | 12000051 | Kit, Handle Assy. (wht) | 10 |
|
- | ||||
| 5 | W10856122 | Screw (Replaces: 65275-80) | 10 |
|
$ 6.98 | ||||
| 6 | 60066-1 | Tray, Egg | 10 |
|
- | ||||
| 7 | 29936-2 | Tray, Butter | 10 |
|
- | ||||
| 8 | 69058-30 | Door, Dairy (large) | 10 |
|
- | ||||
| 9 | WP70111-108 | Trim, Shelf (Replaces: 70111-35) | 10 |
|
Immediately | $ 104.35 | |||
| 10 | 70197-1 | Retainer, Shelf Trim | 10 |
|
Immediately | $ 14.18 | |||
| 11 | 53709-28 | Hinge, Upper | 10 |
|
- | ||||
| 11 | WP3-24838-048 | Screw (Replaces: 65275-52) | 10 |
|
$ 7.00 | ||||
| 12 | 65031-1 | Shim, Upper Hinge | 10 |
|
- | ||||
| 13 | 70121-4 | Cover, Upper Hinge (wht) | 10 |
|
- | ||||
| 14 | 69516-2 | Hinge, Lower (blk) | 10 |
|
- | ||||
| 14 | 65275-51 | Screw, Lower Hinge | 10 |
|
- | ||||
| 15 | 69845-1 | Pin, Lower Hinge | 10 |
|
$ 44.55 | ||||
| 16 | 67483-3 | Washer, Lower Hinge (Replaces: 67483-2) | 10 |
|
Immediately | $ 45.86 | |||
| 17 | 69510-1 | Shim, Lower Hinge | 10 |
|
- | ||||
| 18 | 65275-59 | Screw | 10 |
|
- | ||||
| 18 | 67874-1 | Tapping Plate, Lower Hinge | 10 |
|
- |
