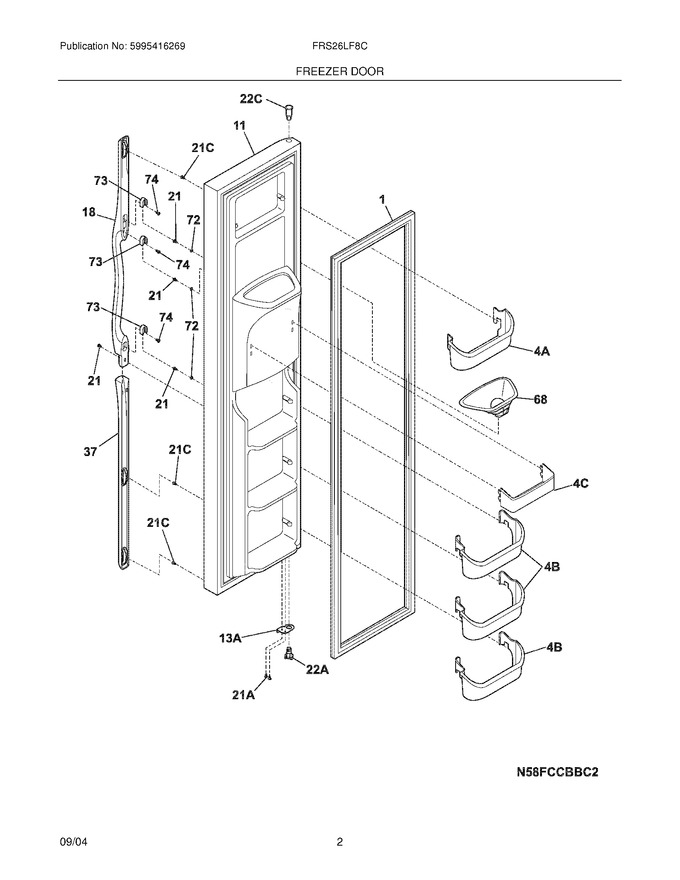

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240554250		Door-frzr,bisque ,complete Assy		Appelez-nous	-
18	240359109		Handle-door,bisque		Appelez-nous	-
21	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
37	240359204		Trim-handle,30.13`` ,bisque ,lower				$ 33.44
68	241525101		Chute-ice				$ 82.25
72	240421701		Button-handle Mtg,dovetail				$ 14.81
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
13A	5303918455		Door Stop,bisque,frzr   (Replaces: 240537104)				$ 142.04
21A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
21C	240521302		Screw,no.8-18 X 3/4				$ 8.19
22A	242000501		Bearing-hinge(frz),closer   (Replaces: 240328202)				$ 7.14
22C	240328402		Bearing-hinge,upper				$ 19.85
4A	240334202		Bin-door,frzr-upper			Immediately	$ 67.21
4B	240351602		Bin-door				$ 67.21
4C	240351702		Bin-door,frzr-dispenser				$ 97.39
F1	241786014		Gasket-frzr Door,white ,magnetic   (Replaces: 240390602)				$ 95.17
NI	240545201		Connector-water,straight   (Replaces: 240352102)				$ 73.71
NI	240470401		Connector-amp		Appelez-nous	-
NI	240552102		Harness-wiring,door				$ 77.60
NI	5303918256		Dispenser Heater Kit				$ 474.16

    View Diagram in Separate Window       Print Part List
