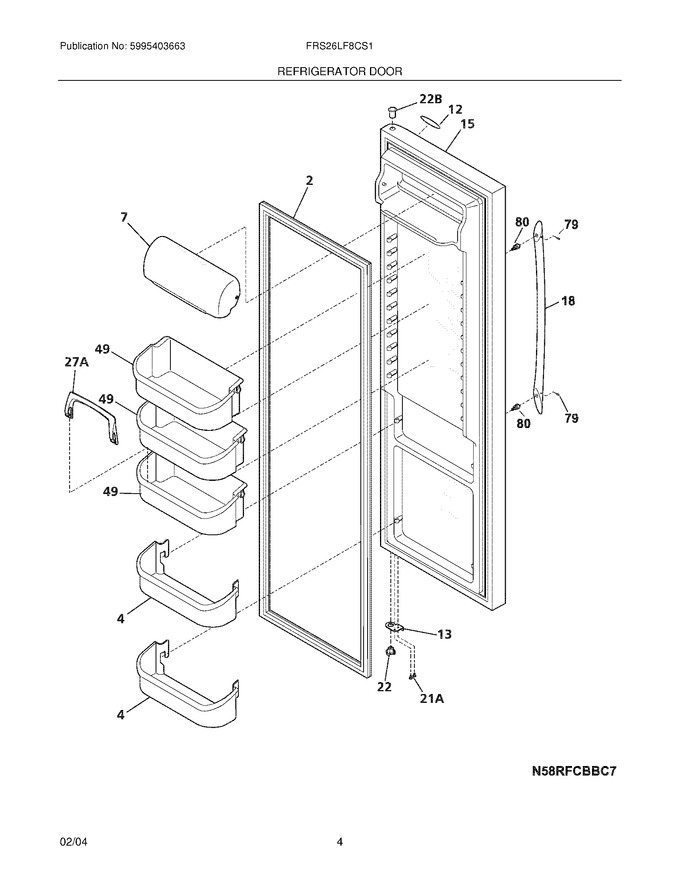

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786005 | Gasket-refr Door,black ,magnetic (Replaces: 240390605) |
|
Immediately | $ 225.62 | ||||
| 4 | 240323002 | Bin-door,pseudo ,bottom |
|
Immediately | $ 67.21 | ||||
| 7 | 240326203 | Door-dairy |
|
$ 40.37 | |||||
| 12 | 241808601 | Label-nameplate (Replaces: 240572601) |
|
$ 12.69 | |||||
| 13 | 240581905 | Door Stop,black ,ref |
|
$ 60.25 | |||||
| 15 | 240451981 | Door-refr,stainless Steel ,complete Assy |
|
$ 514.95 | |||||
| 18 | 240536801 | Handle-door,stainless Steel ,with Insert |
|
- | |||||
| 22 | 240328201 | Bearing-hinge,closer |
|
Immediately | $ 17.72 | ||||
| 49 | 240356402 | Bin-door,gallon |
|
Immediately | $ 106.83 | ||||
| 79 | 218755402 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 33.00 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting (Replaces: 218755503) |
|
Immediately | $ 18.60 | ||||
| 21A | 5303323137 | Screw,10-32 X 1/2 (Replaces: 240598401) |
|
$ 11.88 | |||||
| 22B | 240328404 | Bearing-hinge,black ,upper |
|
$ 22.87 | |||||
| 27A | 240396102 | Retainer,tall Bottle |
|
$ 19.13 |
