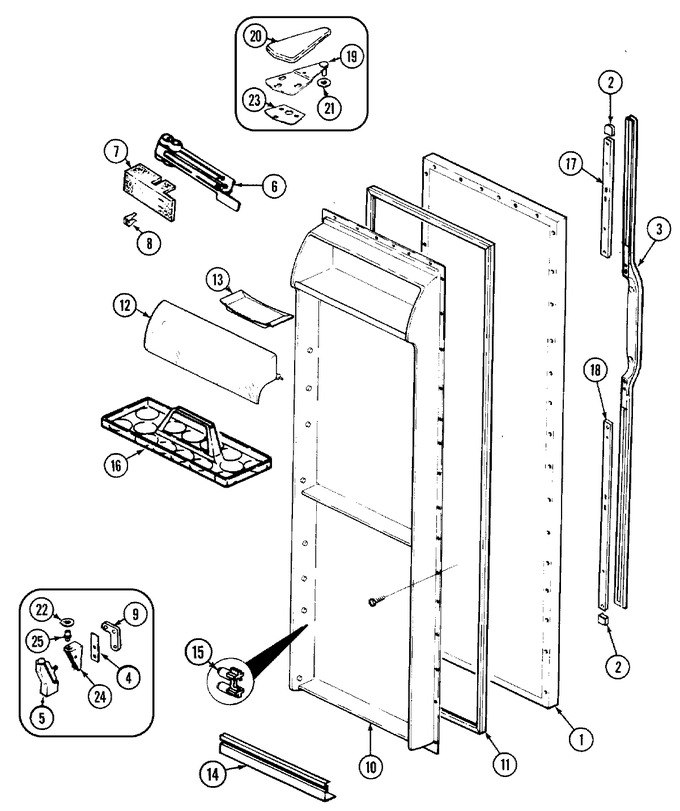

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72347-6-WW | Panel, F.f. Door (wht) | 10 |
|
- | ||||
| 2 | 69590-1 | End Cap, Handle | 10 |
|
- | ||||
| 3 | 12000039 | Kit, Handle Assy. (wht) | 10 |
|
- | ||||
| 4 | 69510-1 | Shim, Lower Hinge | 10 |
|
- | ||||
| 5 | 68978-1 | Cover, Lower Hinge (blk) | 10 |
|
- | ||||
| 6 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 | ||||
| 6 | 69258-1 | Closer, Door | 10 |
|
- | ||||
| 7 | 70049-1 | Insulation Door | 10 |
|
- | ||||
| 8 | 69261-1 | Bracket, Closer | 10 |
|
- | ||||
| 9 | 65275-59 | Screw | 10 |
|
- | ||||
| 9 | 67874-1 | Tapping Plate, Lower Hinge | 10 |
|
- | ||||
| 10 | 65275-5 | Screw | 10 |
|
- | ||||
| 10 | 69238-1 | Liner, F.f. Door | 10 |
|
- | ||||
| 11 | 70024-3 | Gasket | 10 |
|
- | ||||
| 12 | 69058-30 | Door, Dairy (large) | 10 |
|
- | ||||
| 13 | 29936-2 | Tray, Butter | 10 |
|
- | ||||
| 14 | WP70111-108 | Trim, Shelf (Replaces: 70111-35) | 10 |
|
Immediately | $ 104.35 | |||
| 15 | 70197-1 | Retainer, Shelf Trim | 10 |
|
Immediately | $ 14.18 | |||
| 16 | 60066-1 | Tray, Egg | 10 |
|
- | ||||
| 17 | 69586-3 | Trim, Handle Ext. (upper) | 10 |
|
- | ||||
| 18 | 69586-4 | Trim, Handle Ext. (lower) | 10 |
|
- | ||||
| 19 | 53709-26 | Hinge Upper | 10 |
|
- | ||||
| 19 | WP3-24838-048 | Screw (Replaces: 9986-87) | 10 |
|
$ 7.00 | ||||
| 20 | 70121-4 | Cover, Upper Hinge (wht) | 10 |
|
- | ||||
| 21 | WP52185-1 | Washer (Replaces: 52185-1) | 10 |
|
Immediately | $ 9.47 | |||
| 22 | 67483-3 | Washer, Door Spacer | 10 |
|
Immediately | $ 45.86 | |||
| 23 | 65031-1 | Shim, Upper Hinge | 10 |
|
- | ||||
| 24 | 69516-3 | Hinge, Lower (zinc) | 10 |
|
- | ||||
| 24 | 65275-51 | Screw, Lower Hinge | 10 |
|
- | ||||
| 25 | 69845-1 | Pin, Lower Hinge | 10 |
|
$ 44.55 |
