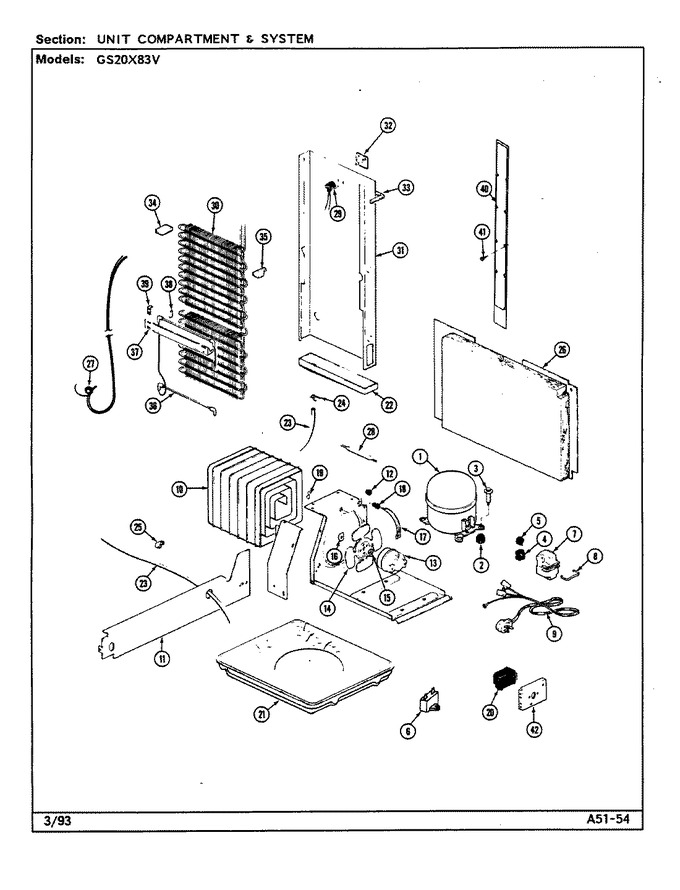

06 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | RA1029-2 | Compressor |
|
- | |||||
| 2 | 17245-4 | Grommet, Compressor |
|
- | |||||
| 3 | 65275-9 | Screw, Compressor Mounting |
|
- | |||||
| 3 | 68840-2 | Wire Harness, Compressor |
|
- | |||||
| 4 | 68857-4 | Relay, Start |
|
- | |||||
| 5 | 69105-1 | Overload |
|
- | |||||
| 6 | W10124350 | Not Required Part Or See Note Capacitor, Run |
|
- | |||||
| 7 | 69754-1 | Cover, Terminal |
|
- | |||||
| 8 | 65886-1 | Clip, Terminal Cover |
|
- | |||||
| 9 | 52890-2 | Cord, Power |
|
- | |||||
| 10 | 60408-2 | U-nut, Condenser |
|
- | |||||
| 10 | RA43644-3 | Condenser |
|
- | |||||
| 11 | 66494-1 | Baffle, Air Divider |
|
- | |||||
| 11 | WP488729 | Screw (Replaces: 9986-45) |
|
Immediately | $ 7.01 | ||||
| 12 | 53351-1 | Grommet, Condenser Tubing |
|
- | |||||
| 13 | 65275-33 | Screw |
|
- | |||||
| 13 | 68481-6 | Motor, Condenser Fan |
|
- | |||||
| 14 | WP12587601 | Blade, Condenser Fan (Replaces: 69958-2) |
|
$ 114.00 | |||||
| 15 | 19913-2 | Washer, Fan Blade |
|
- | |||||
| 16 | WP486692 | Clip, Fan Blade (Replaces: 19914) |
|
$ 7.04 | |||||
| 17 | 56936-1 | Bracket, Fan Motor |
|
- | |||||
| 18 | 56933-1 | Grommet, Bracket |
|
- | |||||
| 19 | 57051-1 | Clip, Motor Bracket |
|
- | |||||
| 20 | 401009-1 | Mounting |
|
- | |||||
| 20 | 66128-5 | Timer, Defrost |
|
- | |||||
| 20 | 405007-1 | Screw |
|
- | |||||
| 21 | 68236-1 | Pan, Drain |
|
$ 89.75 | |||||
| 21 | 45004-20 | Cushion Padding, Drain Pan |
|
- | |||||
| 22 | 53523-1 | Trough, Drain |
|
- | |||||
| 23 | 26911-18 | Hose, Drain |
|
- | |||||
| 24 | WP596669 | Clamp, Drain Hose (Replaces: 9602-3) |
|
Immediately | $ 7.56 | ||||
| 25 | 53516-5 | Clamp, Drain Hose |
|
- | |||||
| 26 | 66339-1 | Cover |
|
- | |||||
| 27 | RA95090-3 | Heat Exchanger |
|
- | |||||
| 27 | 26088-22 | Cover, Heat Exchanger |
|
- | |||||
| 28 | WPW10143759 | Drier (Replaces: 13900) |
|
Immediately | $ 27.70 | ||||
| 29 | 52085-29 | Thermostat, Defrost |
|
$ 70.25 | |||||
| 30 | RA43643-1 | Evaporator |
|
- | |||||
| 31 | 65033-1 | Housing, Freezer Coil |
|
- | |||||
| 32 | 55878-1 | Board, Terminal |
|
- | |||||
| 33 | 66325-17 | Seal |
|
- | |||||
| 34 | 65063-1 | Seal, Styrofoam-(left) |
|
- | |||||
| 35 | 65064-1 | Seal, Styrofoam-(right) |
|
- | |||||
| 36 | 69848-3 | Heater, Defrost |
|
- | |||||
| 37 | 29915-12 | Reflector |
|
- | |||||
| 37 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 38 | 52067-1 | Clip, Defrost Heater |
|
- | |||||
| 39 | 69208-3 | Wire Harness, Main |
|
- | |||||
| 39 | 52561-1 | Bracket, Heater Shield |
|
- | |||||
| 40 | 66381-1 | Cover |
|
- | |||||
| 41 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 42 | 29282-2 | Bracket, Mounting Timer |
|
- | |||||
| 42 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 43 | 108429-1 | Manual, Use & Care |
|
- |
