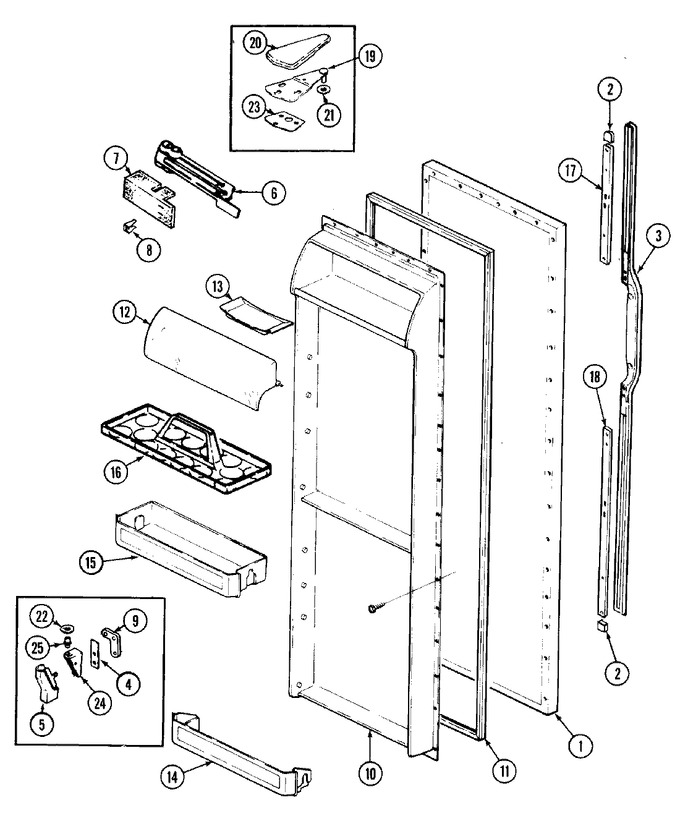

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72347-6-WW | Panel, F.f. Door (wht) | 11 |
|
- | ||||
| 2 | 69590-1 | End Cap, Handle | 11 |
|
- | ||||
| 3 | 12000039 | Kit, Handle Assy. (wht) | 11 |
|
- | ||||
| 4 | 69510-1 | Shim, Lower Hinge | 11 |
|
- | ||||
| 5 | 68978-4 | Cover, Lower Hinge (wht) | 11 |
|
- | ||||
| 6 | 54485-1 | Closer, Door | 11 |
|
- | ||||
| 6 | WP489478 | Screw (Replaces: 400017-1) | 11 |
|
$ 6.98 | ||||
| 7 | 52613-1 | Insulation, Closer | 11 |
|
- | ||||
| 8 | 52614-1 | Bracket, Closer | 11 |
|
- | ||||
| 9 | 65275-59 | Screw | 11 |
|
- | ||||
| 9 | 67874-1 | Tapping Plate, Lower Hinge | 11 |
|
- | ||||
| 10 | 65275-5 | Screw | 11 |
|
- | ||||
| 10 | 69238-1 | Liner, F.f. Door | 11 |
|
- | ||||
| 11 | 70019-3 | Gasket | 11 |
|
- | ||||
| 12 | 69058-13 | Door, Dairy | 11 |
|
- | ||||
| 13 | 29936-2 | Tray, Butter | 11 |
|
- | ||||
| 14 | 69606-1 | Front, Pick-off | 11 |
|
- | ||||
| 15 | 69873-1 | Shelf, Pick-off | 11 |
|
- | ||||
| 16 | 60066-1 | Tray, Egg | 11 |
|
- | ||||
| 17 | 69586-1 | Trim, Handle | 11 |
|
- | ||||
| 18 | 69586-2 | Trim, Handle | 11 |
|
- | ||||
| 19 | 53709-22 | Hinge, Upper | 11 |
|
- | ||||
| 19 | WP3-24838-048 | Screw (Replaces: 9986-87) | 11 |
|
$ 7.00 | ||||
| 20 | 65003-3 | Cover, Upper Hinge (alm) | 11 |
|
- | ||||
| 21 | WP52185-1 | Washer (Replaces: 52185-1) | 11 |
|
Immediately | $ 9.47 | |||
| 22 | 67483-3 | Washer, Lower Hinge (Replaces: 67483-2) | 11 |
|
Immediately | $ 45.86 | |||
| 23 | 65031-1 | Shim, Upper Hinge | 11 |
|
- | ||||
| 24 | 65275-51 | Screw, Lower Hinge | 11 |
|
- | ||||
| 24 | 69516-4 | Hinge, Lower (zinc) | 11 |
|
- | ||||
| 25 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) | 11 |
|
$ 9.39 | ||||
| 25 | 69845-1 | Pin, Lower Hinge | 11 |
|
$ 44.55 | ||||
| 25 | WP61003045 | Trim, Door Shelf (Replaces: 68832-100) | 11 |
|
$ 129.55 |
