01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Fresh Food Outer Door


07 - Optional Ice Maker Kit (ice)


08 - Shelves & Accessories


09 - Unit Compartment & System


10 - Wiring Information

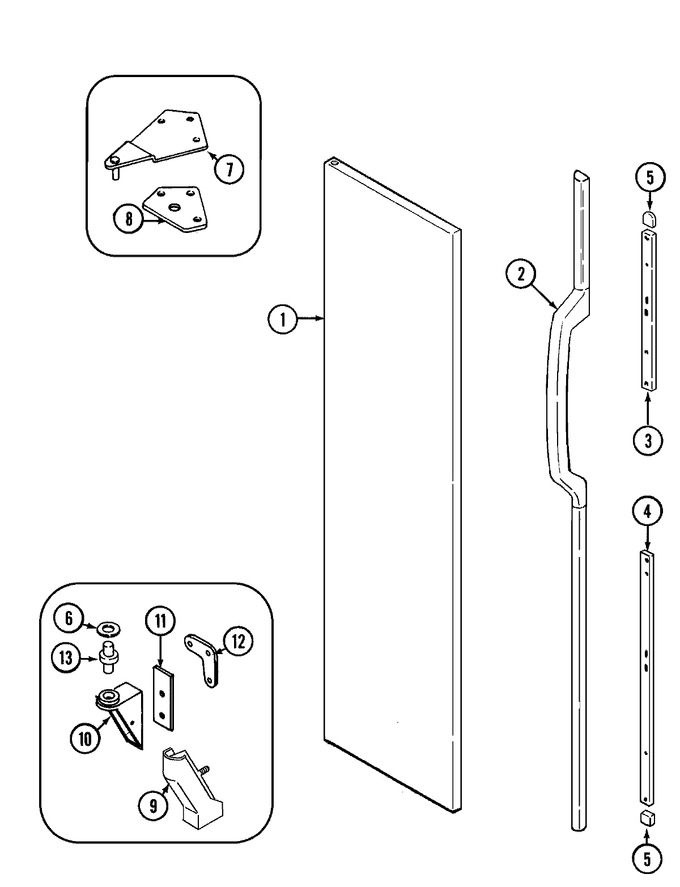

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72341-100-AM		Panel, Frz. Door (alm)	10	Appelez-nous	-
2	12000043		Kit, Handle Assy (almond)	10	Appelez-nous	-
3	69586-3		Trim, Handle Ext. (upper)	10	Appelez-nous	-
4	W10856122		Screw   (Replaces: 65275-80)	10			$ 6.98
4	69586-4		Trim, Handle Ext. (lower)	10	Appelez-nous	-
5	69590-1		End Cap, Handle	10	Appelez-nous	-
6	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	10		Immediately	$ 45.86
7	WP3-24838-048		Screw, Upper Hinge   (Replaces: 65275-86)	10			$ 7.00
7	53709-28		Hinge, Upper	10	Appelez-nous	-
8	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
9	68978-3		Cover, Lower Hinge (alm)	10	Appelez-nous	-
10	65275-51		Screw, Lower Hinge	10	Appelez-nous	-
10	69516-4		Hinge, Lower (zinc)	10	Appelez-nous	-
11	69510-1		Shim, Lower Hinge	10	Appelez-nous	-
12	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
12	65275-59		Screw	10	Appelez-nous	-
13	69845-1		Pin, Lower Hinge	10			$ 44.55
