SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Fresh Food Outer Door


07 - Optional Ice Maker Kit (ice)


08 - Shelves & Accessories


09 - Unit Compartment & System


10 - Wiring Information

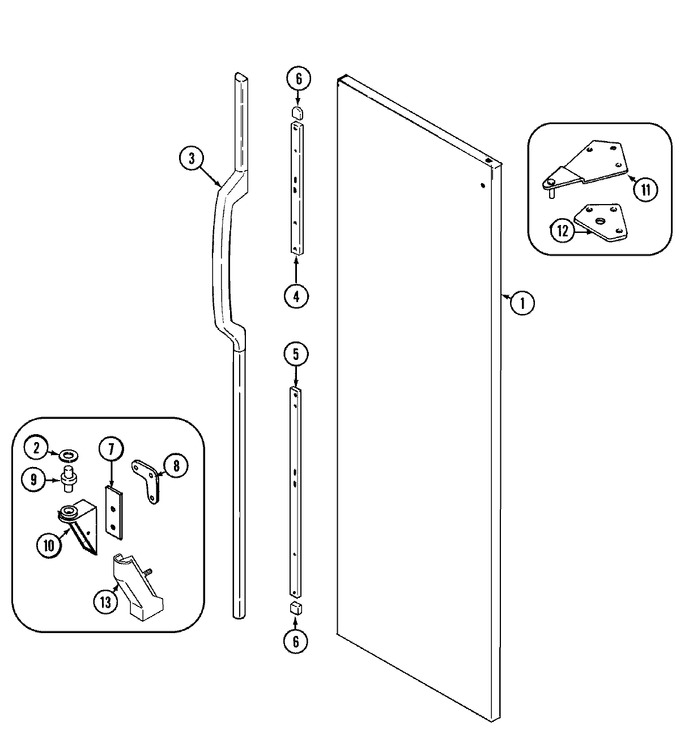

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72347-4-WW		Panel, F.f. Door (wht)	10	Appelez-nous	-
2	67483-3		Washer, Door Spacer	10		Immediately	$ 45.86
3	12000039		Kit, Handle Assy. (wht)	10	Appelez-nous	-
4	69586-3		Trim, Handle Ext. (upper)	10	Appelez-nous	-
5	W10856122		Screw   (Replaces: 65275-80)	10			$ 6.98
5	69586-4		Trim, Handle Ext. (lower)	10	Appelez-nous	-
6	69590-1		End Cap, Handle	10	Appelez-nous	-
7	69510-1		Shim, Lower Hinge	10	Appelez-nous	-
8	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
9	69845-1		Pin, Lower Hinge	10			$ 44.55
10	69516-1		Hinge, Lower (blk)	10	Appelez-nous	-
11	53709-26		Hinge Upper	10	Appelez-nous	-
11	WP3-24838-048		Screw, Upper Hinge   (Replaces: 65275-86)	10			$ 7.00
12	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
13	68978-4		Cover, Lower Hinge (wht)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
