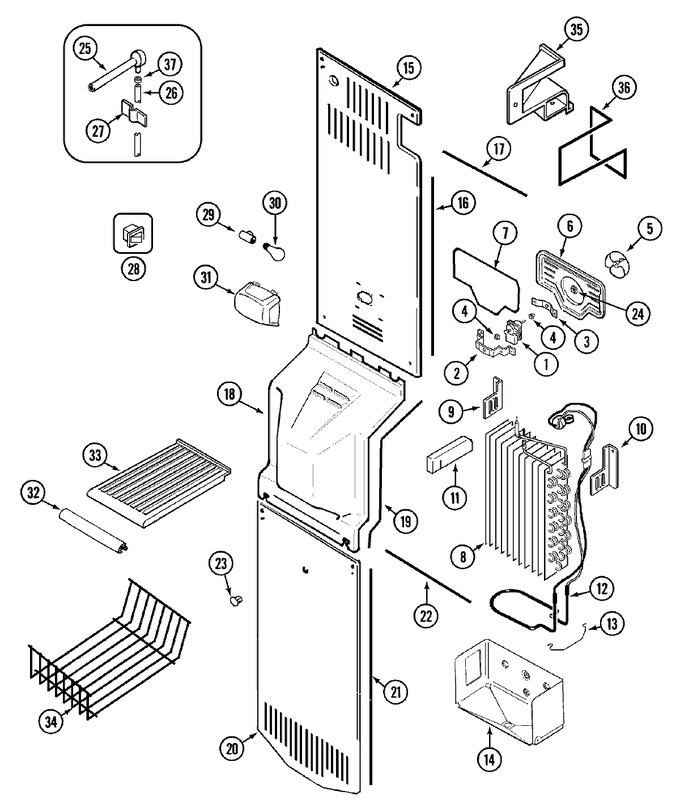

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 61003605 | Motor, Evaporator Fan | 10 |
|
- | ||||
| 2 | WP8281227 | Screw (Replaces: 61002819) | 10 |
|
$ 9.40 | ||||
| 2 | 61001930 | Bracket, Evaporator Fan | 10 |
|
- | ||||
| 3 | 61002234 | Retainer, Evaporator Fan | 10 |
|
- | ||||
| 3 | WP8281227 | Screw (Replaces: 61002819) | 10 |
|
$ 9.40 | ||||
| 4 | 61002235 | Bushing, Evaporator Fan | 10 |
|
- | ||||
| 5 | 61003622 | Blade, Evaporator Fan | 10 |
|
- | ||||
| 6 | 61003606 | Shroud, Fan | 10 |
|
- | ||||
| 7 | WP854334 | Seal (Replaces: 61003208) | 10 |
|
$ 11.95 | ||||
| 8 | 12001639 | Evap/heat Exch,assy 21 Sxs Apd | 10 |
|
$ 79.34 | ||||
| 9 | 61003215 | Bracket, Evaporator (lt) | 10 |
|
- | ||||
| 10 | 61003216 | Bracket, Evaporator (rt) | 10 |
|
- | ||||
| 11 | 61003213 | Block, Air | 10 |
|
- | ||||
| 12 | WP61006152 | Heater & Therm. Assy., Defrost (Replaces: 61004283) | 10 |
|
$ 126.28 | ||||
| 13 | 61003608 | Clip, Defrost Heater | 10 |
|
- | ||||
| 14 | 61003203 | Housing, Evaporator | 10 |
|
- | ||||
| 15 | WP489474 | Screw (Replaces: 61002429) | 10 |
|
Immediately | $ 7.17 | |||
| 15 | 61003252 | Cover, Coil (upr) | 10 |
|
- | ||||
| 16 | WP854334 | Seal (Replaces: 61003210) | 10 |
|
$ 11.95 | ||||
| 16 | WP854334 | Seal (Replaces: 61003211) | 10 |
|
$ 11.95 | ||||
| 17 | 61003207 | Seal | 10 |
|
- | ||||
| 18 | 61003193 | Cover, Evaporator Fan | 10 |
|
- | ||||
| 19 | WP854334 | Seal (Replaces: 61003209) | 10 |
|
$ 11.95 | ||||
| 20 | 61003194 | Cover, Coil (lwr) | 10 |
|
- | ||||
| 20 | WP489474 | Screw (Replaces: 61002429) | 10 |
|
Immediately | $ 7.17 | |||
| 21 | WP854334 | Seal (Replaces: 61003212) | 10 |
|
$ 11.95 | ||||
| 22 | 61003214 | Seal | 10 |
|
- | ||||
| 23 | 61001952 | Plug Button, Evap. Cover | 10 |
|
- | ||||
| 24 | 61003198 | Slinger, Disc | 10 |
|
- | ||||
| 25 | 61003253 | Grommet, Fill Tube | 10 |
|
- | ||||
| 25 | 67877-1 | Clip, Fill Tube | 10 |
|
$ 4.83 | ||||
| 26 | WPB5705307 | Tubing, Valve To Grommet (Replaces: 67579-2) | 10 |
|
$ 11.19 | ||||
| 27 | 61001889 | Clip, Water Line (adhesive) | 10 |
|
- | ||||
| 28 | W11396033 | Switch, Light (Replaces: 61003254) | 10 |
|
Immediately | $ 33.57 | |||
| 29 | 70459-1 | Receptacle, Bulb | 10 |
|
- | ||||
| 30 | W11618980 | Bulb, Light (40w) (Replaces: 61002812) | 10 |
|
$ 19.22 | ||||
| 31 | 61002272 | Shield, Light | 10 |
|
- | ||||
| 32 | 61003609 | Trim, Shelf (frt) | 10 |
|
- | ||||
| 33 | 61003196 | Shelf, Frz. | 10 |
|
- | ||||
| 33 | 61003195 | Shelf, Frz. | 10 |
|
- | ||||
| 34 | 61003201 | Trivet, Shelf | 10 |
|
- | ||||
| 35 | 61003205 | Diverter, Air | 10 |
|
- | ||||
| 35 | WP489478 | Screw (Replaces: 400017-1) | 10 |
|
$ 6.98 | ||||
| 36 | 61003206 | Seal, Air Diverter | 10 |
|
- | ||||
| 37 | WP488878 | Clamp, Water Line (Replaces: 61001161) | 10 |
|
$ 10.44 | ||||
| 38 | 61003610 | Wire Harness, Fan & Heater | 10 |
|
- | ||||
| 38 | 61003611 | Wire Harness, Frz. | 10 |
|
- |
