SELECT A DIAGRAM

01 - Compressor (rev 10)


02 - Compressor (rev 18)


03 - Controls


04 - Fountain


05 - Freezer Compartment


06 - Freezer Inner Door


07 - Freezer Outer Door


08 - Fresh Food Inner Door


09 - Fresh Food Outer Door


10 - Ice Bin (rev 10)


11 - Ice Bin (rev 12)


12 - Ice Maker


13 - Shelves & Accessories


14 - Wiring Information

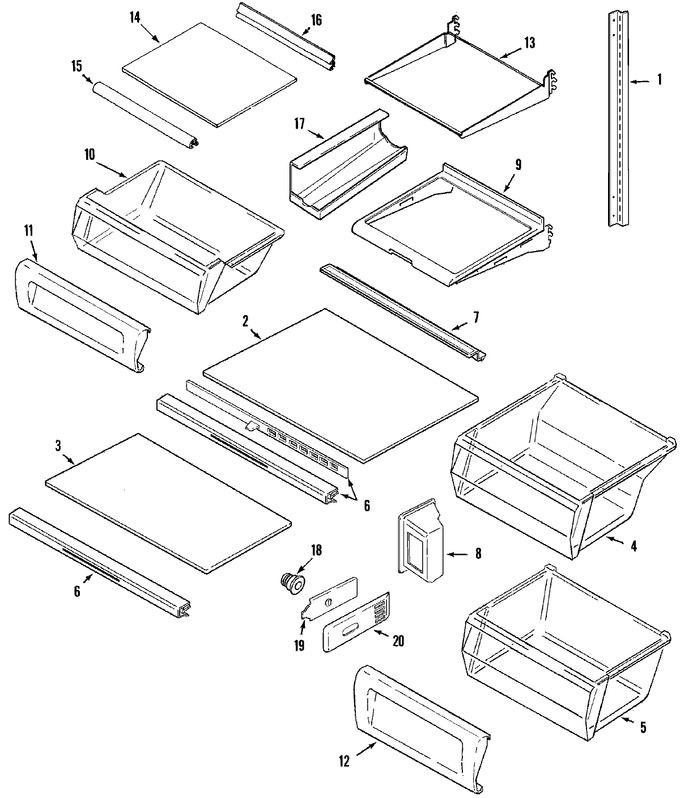

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489478		Screw   (Replaces: 400017-1)	10			$ 6.98
1	61003240		Rail, Shelf Support	10	Appelez-nous	-
2	61003241		Glass, Crisper Shelf	10			$ 91.34
3	61003157		Glass, Meat Shelf	10	Appelez-nous	-
4	61003338		Pan, Crisper	10	Appelez-nous	-
5	61003356		Pan, Meat	10	Appelez-nous	-
6	61003524		Trim, Shelf (crisper)	10	Appelez-nous	-
6	61003162		Trim	10	Appelez-nous	-
7	61003161		Seal, Crisper Shelf (rear)	10	Appelez-nous	-
8	WP61006081		Cover Assy., Air Return   (Replaces: 61004287)	10			$ 80.27
9	61003801		Shelf, Slide Out (spillproof)	10	Appelez-nous	-
10	61003375		Pan, Deli	10	Appelez-nous	-
11	61003663		Front, Deli Pan	10	Appelez-nous	-
12	61003665		Front, Crisper Pan	10	Appelez-nous	-
12	61003666		Front, Meat Pan	10	Appelez-nous	-
13	61003373		Frame, Shelf	10	Appelez-nous	-
13	61003736		Frame, Slide Out Shelf	10	Appelez-nous	-
14	61003427		Glass, Deli Shelf	10	Appelez-nous	-
15	61003245		Trim, Shelf	10	Appelez-nous	-
16	61003244		Trim, Shelf	10	Appelez-nous	-
17	61002657		Holder, Beverage	10	Appelez-nous	-
18	53726-2		Tunnel, Air (meat)	10	Appelez-nous	-
19	61003249		Slide, Control (meat)	10	Appelez-nous	-
20	61003250		Retainer, Control Slide	10	Appelez-nous	-
