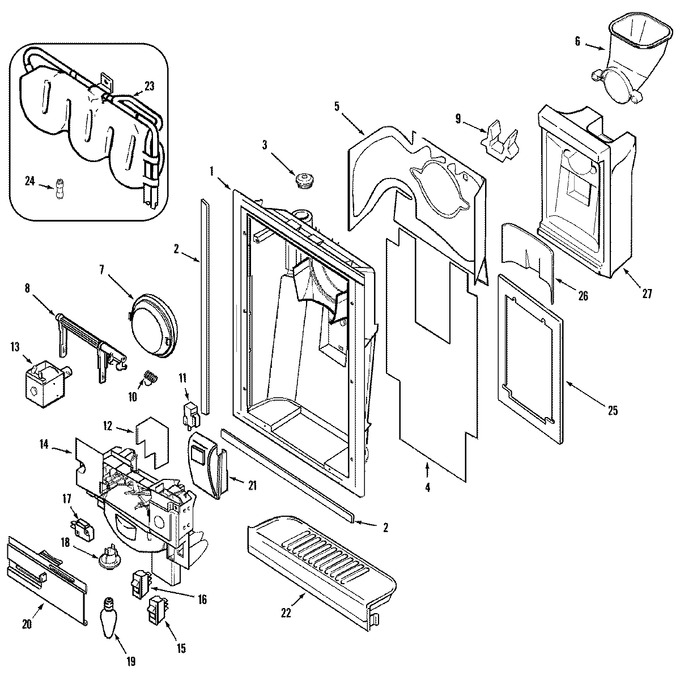

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 489392 | Screw (Replaces: 415013-35) | 11 |
|
$ 12.02 | ||||
| 1 | 61003307 | Screw | 11 |
|
- | ||||
| 1 | 61004681 | Housing, Fountain (blk) | 11 |
|
$ 64.69 | ||||
| 2 | 61003286 | Tape (1ft.) | 11 |
|
$ 7.25 | ||||
| 3 | 61003300 | Grommet, Water Tube | 11 |
|
- | ||||
| 4 | 61003304 | Foil, Ftn. Back | 11 |
|
$ 5.59 | ||||
| 5 | 61003613 | Heater, Fountain | 11 |
|
- | ||||
| 6 | 61004677 | Chute, Ice | 11 |
|
$ 22.17 | ||||
| 6 | 489392 | Screw (Replaces: 415013-35) | 11 |
|
$ 12.02 | ||||
| 7 | WP61005883 | Assy., Ice Door (Replaces: 61005883) | 11 |
|
$ 26.76 | ||||
| 8 | 61005886 | Strike, Ice Door | 11 |
|
$ 5.65 | ||||
| 9 | 61005811 | Insulation, Ice Chute | 11 |
|
- | ||||
| 10 | 61004388 | Spring, Ftn. Return | 11 |
|
$ 7.72 | ||||
| 11 | 415041-35 | Screw | 11 |
|
- | ||||
| 11 | 61005520 | Switch, Limit | 11 |
|
$ 21.62 | ||||
| 12 | 61003621 | Board, Delay | 11 |
|
- | ||||
| 13 | WP488234 | Screw (Replaces: 61003297) | 11 |
|
$ 6.07 | ||||
| 13 | 61005885 | Solenoid | 11 |
|
- | ||||
| 14 | 489392 | Screw (Replaces: 415013-35) | 11 |
|
$ 12.02 | ||||
| 14 | 61004326 | Bracket, Fountain (blk) | 11 |
|
- | ||||
| 15 | 61003289 | Plug, Hole (fills Switch Hole) | 11 |
|
- | ||||
| 16 | 61003290 | Switch, Light | 11 |
|
- | ||||
| 17 | 415041-35 | Screw | 11 |
|
- | ||||
| 17 | 55440-3 | Switch | 11 |
|
- | ||||
| 18 | 70458-1 | Receptacle, Bulb | 11 |
|
- | ||||
| 18 | 61001263 | Clip, Receptacle | 11 |
|
- | ||||
| 18 | 61001262 | Adapter, Receptacle | 11 |
|
- | ||||
| 19 | 61001236 | Bulb, Light | 11 |
|
- | ||||
| 20 | 61004052 | Screw | 11 |
|
- | ||||
| 20 | 61003592 | Selector, Slide (blk) | 11 |
|
- | ||||
| 21 | 61003593 | Pad, Actuator (blk) | 11 |
|
- | ||||
| 22 | 61003594 | Grill (blk) | 11 |
|
$ 42.19 | ||||
| 23 | WP489478 | Screw (Replaces: 400017-1) | 11 |
|
$ 6.98 | ||||
| 23 | 61003306 | Tank Assy., Water | 11 |
|
- | ||||
| 24 | WP2300868 | Union, Reducing (5/16``-5/16``) (Replaces: 61005808) | 11 |
|
Immediately | $ 26.15 | |||
| 25 | 415041-35 | Screw | 11 |
|
- | ||||
| 25 | 55440-1 | Switch, Crusher | 11 |
|
- | ||||
| 26 | 61005809 | Insulation, Hsg. Perimeter | 11 |
|
- | ||||
| 27 | 61005810 | Insulation, Hsg. Rear | 11 |
|
- | ||||
| 28 | 61005373 | Insulation, Ftn. (styrofoam) | 11 |
|
- | ||||
| 29 | 61003675 | Wire Harness, Ftn. Switches | 11 |
|
- | ||||
| 29 | 61003676 | Wire Harness, Ftn. Slide | 11 |
|
- |
