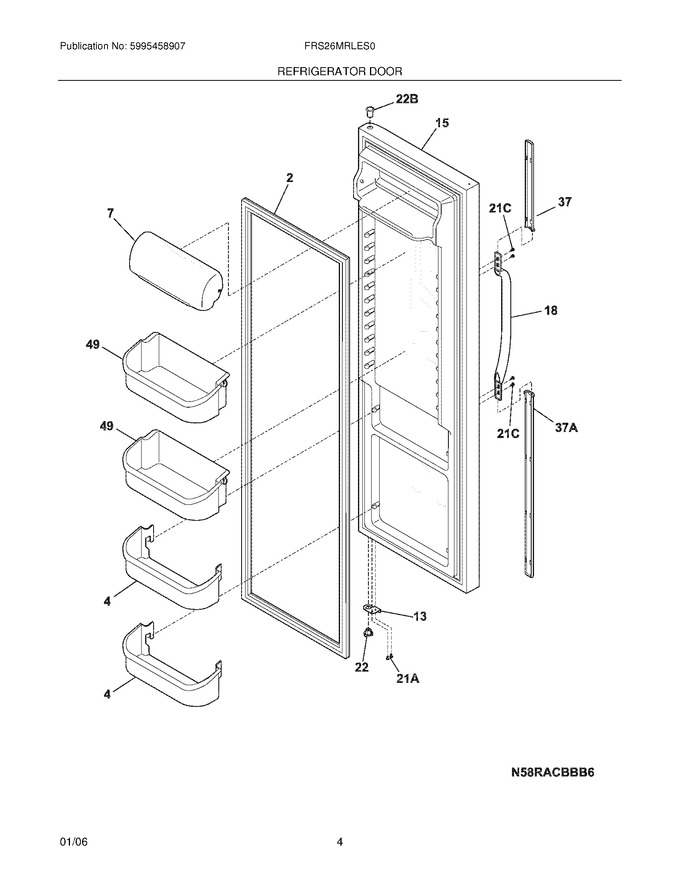

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240323001		Bin-door,pseudo ,bottom			Immediately	$ 42.81
7	240326203		Door-dairy				$ 40.37
13	240581905		Door Stop,black ,ref				$ 60.25
15	241534531		Door-refr,stainless ,complete Assy		Appelez-nous	-
18	218762703		Handle-door,black				$ 67.04
22	240328203		Bearing-hinge,black ,closer			Immediately	$ 27.23
37	218811620		Trim-handle,black ,upper		Appelez-nous	-
49	240356401		Bin-door,gallon			Immediately	$ 85.64
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598401)				$ 11.88
21C	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
22B	240328404		Bearing-hinge,black ,upper				$ 22.87
37A	5304471621		Trim-handle,black ,lower   (Replaces: 218811617)				$ 97.83
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
F2	241786005		Gasket-refr Door,black ,magnetic   (Replaces: 241674805)			Immediately	$ 225.62
NI	218676004		Band-decorative,satin Aluminum ,handle Trim				$ 57.60
NI	218490901		Cleaner,stainless Steel				$ 5.58
