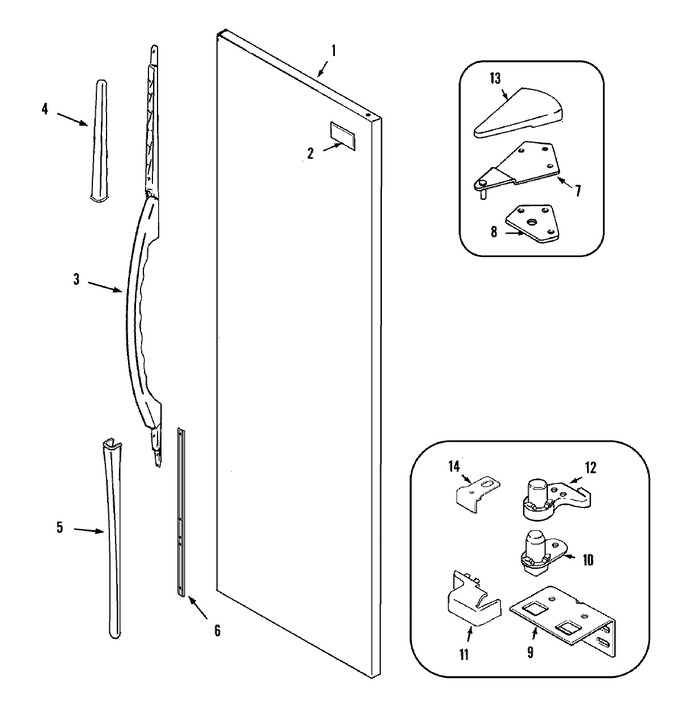

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61006068		Panel, F.f. Door (blk)	11	Appelez-nous	-
2	61002504		Bezel, Nameplate (blk)	11	Appelez-nous	-
3	61005786		Screw	11	Appelez-nous	-
3	61005611		Handle, Door (blk)	11	Appelez-nous	-
3	61005394		Screw	11			$ 6.24
4	61005447		Extension, Handle (upr-blk)	11	Appelez-nous	-
5	61006069		Extension, Handle (lwr-blk)	11	Appelez-nous	-
6	61005606		Cleat, Handle Extension	11	Appelez-nous	-
6	61005394		Screw	11			$ 6.24
7	WP3-24838-048		Screw   (Replaces: 61004763)	11			$ 7.00
7	61004896		Hinge, Upper	11			$ 36.71
8	61001922		Shim, Upper Hinge	11			$ 0.71
9	3400112		Screw   (Replaces: 61003128)	11			$ 62.96
9	61002361		Hinge, Lower (blk)	11			$ 74.20
10	61003174		Pin, Lower Hinge	11			$ 6.22
11	61003537		Cover, Lower Hinge (blk)	11	Appelez-nous	-
12	W10856122		Screw   (Replaces: 61002180)	11			$ 6.98
12	61005724		Closer, Door (w/cup)	11			$ 23.79
13	61002375		Cover, Upper Hinge (blk)	11	Appelez-nous	-
14	W10856122		Screw   (Replaces: 61002180)	11			$ 6.98
14	61003273		Stop, Door	11	Appelez-nous	-
