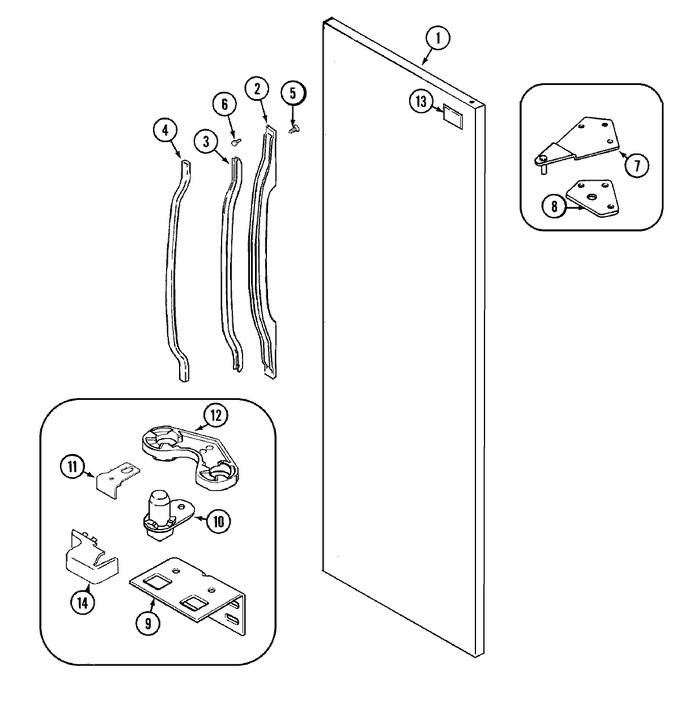

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61004604		Panel, F.f. Door (wht)	10	Appelez-nous	-
2	61003167		Handle (wht)	10	Appelez-nous	-
3	61003168		Frame, Handle	10	Appelez-nous	-
4	61003169		Insert, Handle (wht)	10	Appelez-nous	-
5	WP7101P126-60		Screw   (Replaces: 400061-1)	10		Immediately	$ 6.85
6	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
7	WP3-24838-048		Screw   (Replaces: 61004763)	10			$ 7.00
7	61004896		Hinge, Upper	10			$ 36.71
8	61001922		Shim, Upper Hinge	10			$ 0.71
9	61001918		Hinge, Lower (wht)	10			$ 38.93
9	3400112		Screw   (Replaces: 61003128)	10			$ 62.96
10	61003174		Pin, Lower Hinge	10			$ 6.22
11	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
11	61003273		Stop, Door	10	Appelez-nous	-
12	W10856122		Screw   (Replaces: 61002180)	10			$ 6.98
12	61003647		Closer, Door (natural)	10			$ 10.19
13	66981-5		Bezel, Nameplate (wht)	10	Appelez-nous	-
14	61003220		Cover, Lower Hinge (wht)	10			$ 15.37
