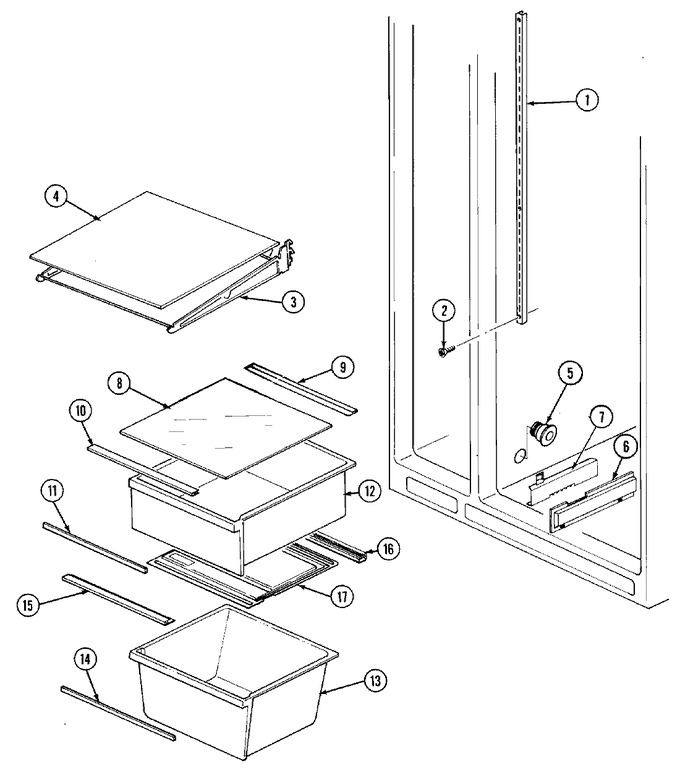

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67311-1		Rail, Shelf Support	10	Appelez-nous	-
2	400037-28		Screw	10	Appelez-nous	-
3	70310-2		Frame, Shelf	10	Appelez-nous	-
4	70307-1		Shelf, Slide	10	Appelez-nous	-
5	53726-2		Tunnel, Air (meat)	10	Appelez-nous	-
6	65737-2		Control Housing	10	Appelez-nous	-
6	56686-5		Clip, Secondary Seal	10	Appelez-nous	-
7	65736-1		Slide Control, (meat)	10	Appelez-nous	-
8	68139-23		Crisper Shelf(glass)	10	Appelez-nous	-
9	68157-2		Seal, Crisper Pan (rear)	10	Appelez-nous	-
10	66650-2		Seal, Crisper Pan (front)	10	Appelez-nous	-
11	68124-99		Insert, Crisper Handle	10	Appelez-nous	-
12	66636-140		Pan, Crisper	10	Appelez-nous	-
13	66636-138		Pan, Crisper	10	Appelez-nous	-
14	68124-99		Insert, Crisper Handle	10	Appelez-nous	-
15	65648-2		Seal, Meat Pan (front)	10	Appelez-nous	-
16	65649-2		Seal, Meat Pan (rear)	10	Appelez-nous	-
17	65608-6		Cover, Meat Pan	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
