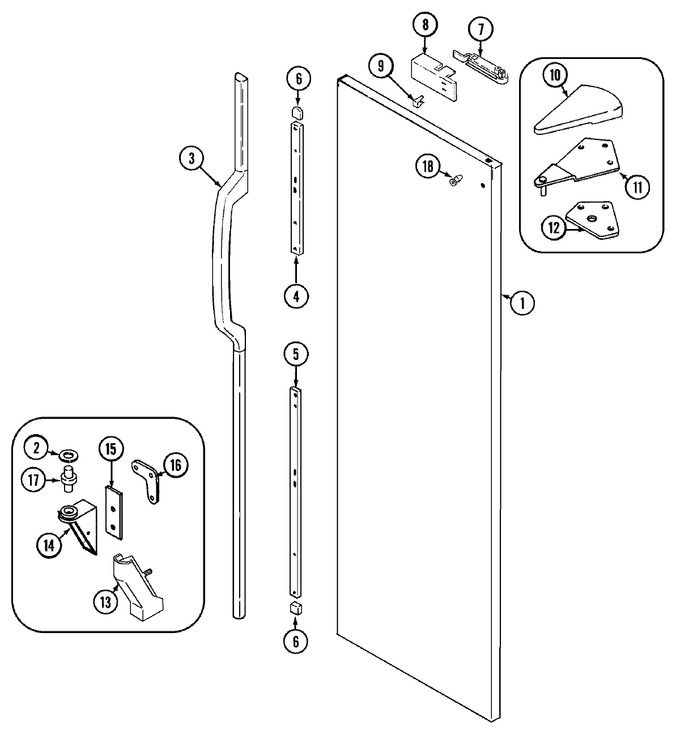

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72341-3-WW		Panel, F.f. Door (wht)	10	Appelez-nous	-
1	495034-900		Plug Button, Door	10	Appelez-nous	-
2	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	10		Immediately	$ 45.86
3	12000039		Kit, Handle Assy. (wht)	10	Appelez-nous	-
4	69586-3		Trim, Handle Ext. (upper)	10	Appelez-nous	-
5	69586-4		Trim, Handle Ext. (lower)	10	Appelez-nous	-
5	W10856122		Screw   (Replaces: 65275-80)	10			$ 6.98
6	69590-1		End Cap, Handle	10	Appelez-nous	-
7	414004-1		Screw	10	Appelez-nous	-
7	69258-1		Closer, Door	10	Appelez-nous	-
8	52613-1		Insulation, Closer	10	Appelez-nous	-
8	70049-1		Insulation Door	10	Appelez-nous	-
9	69261-1		Bracket, Closer	10	Appelez-nous	-
10	70121-4		Cover, Upper Hinge (wht)	10	Appelez-nous	-
11	53709-26		Hinge Upper	10	Appelez-nous	-
11	WP3-24838-048		Screw, Upper Hinge   (Replaces: 65275-86)	10			$ 7.00
12	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
13	68978-1		Cover, Lower Hinge (blk)	10	Appelez-nous	-
14	69516-1		Hinge, Lower (blk)	10	Appelez-nous	-
15	69510-1		Shim, Lower Hinge	10	Appelez-nous	-
16	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
17	69845-1		Pin, Lower Hinge	10			$ 44.55
18	29356-1		Retainer, Nameplate	10	Appelez-nous	-
