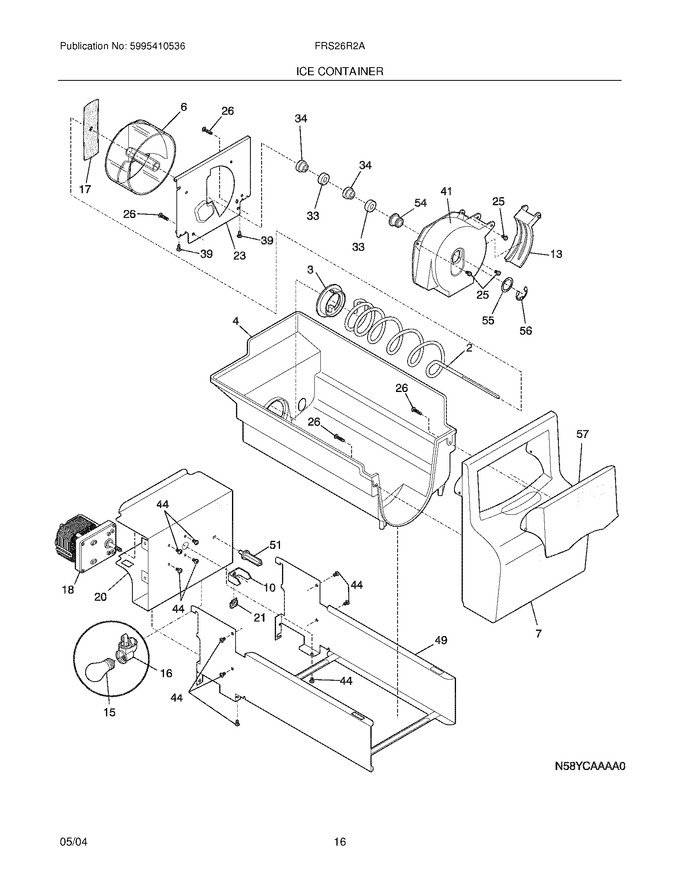

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241716101 | Auger-ice (Replaces: 5304428402) |
|
$ 117.32 | |||||
| 3 | 241685201 | Cam-drive (Replaces: 5304404343) |
|
$ 41.81 | |||||
| 4 | 241734001 | Container-ice,bucket Only (Replaces: 218815300) |
|
$ 105.61 | |||||
| 6 | 241685101 | Drum-ice Disp (Replaces: 5304404346) |
|
$ 51.74 | |||||
| 7 | 241734201 | Front-ice Container (Replaces: 218815400) |
|
$ 87.04 | |||||
| 10 | 241726501 | Bar-drive (Replaces: 5304404337) |
|
$ 58.82 | |||||
| 13 | 241885001 | Gate (Replaces: 5304404359) |
|
$ 75.83 | |||||
| 15 | 316538904 | Light Bulb/lamp,a-15 ,clear ,40 W ,120 V,miniature (Replaces: 240436702) |
|
Immediately | $ 20.48 | ||||
| 16 | 240433701 | Receptacle,e27a Lampholder ,250 V |
|
- | |||||
| 17 | 241684503 | Drive Blade (Replaces: 5304404345) |
|
$ 17.44 | |||||
| 20 | 5304407106 | Cover-motor |
|
- | |||||
| 21 | 241726501 | Nut-drive (Replaces: 215285100) |
|
$ 58.82 | |||||
| 23 | 241684001 | Plate-front (Replaces: 5304404347) |
|
$ 149.54 | |||||
| 25 | 240555002 | Screw,hex Washer Head ,8-32t X 0.375 (Replaces: 5304404362) |
|
Immediately | $ 13.46 | ||||
| 26 | 215503203 | Screw,cr Pan Hd `10-16 X 0.500 (Replaces: 215503200) |
|
Immediately | $ 7.09 | ||||
| 33 | 241684802 | Spacer (Replaces: 5304404351) |
|
$ 9.10 | |||||
| 34 | 5304404349 | Spacer |
|
- | |||||
| 39 | 241690501 | Screw (Replaces: 5304404365) |
|
$ 16.30 | |||||
| 41 | 241885001 | Housing-crusher (Replaces: 5304404358) |
|
$ 75.83 | |||||
| 44 | 218359200 | Screw,pan Head ,8-32 X 0.250 |
|
- | |||||
| 49 | 241734501 | Rail Assy (Replaces: 5304404329) |
|
$ 184.99 | |||||
| 51 | 5304404336 | Rotation Stop |
|
- | |||||
| 54 | 241685001 | Nut-auger (Replaces: 5304404357) |
|
$ 19.85 | |||||
| 55 | 5304404360 | Washer |
|
- | |||||
| 56 | 241690201 | E-ring (Replaces: 5304404361) |
|
$ 19.13 | |||||
| 57 | 241734101 | Door-access (Replaces: 5304404363) |
|
$ 50.61 | |||||
| F18 | 241551504 | Motor-auger |
|
- | |||||
| NI | 240352601 | Wiring Harness,internal ,with Plug |
|
- | |||||
| NI | 215781700 | Clip-tube |
|
- | |||||
| NI | 240323807 | Ice Container Assy,w/moving Parts |
|
- |
